Lesson 20 Magic light cup MODULE
Overview
In this experiment, we will learn how to use the light cup module.
Component Required:
(1) x Elego Uno R3
(1) x USB cable
(2) x Magic Light Cup module
(x) x F-M wires
Component Introduction

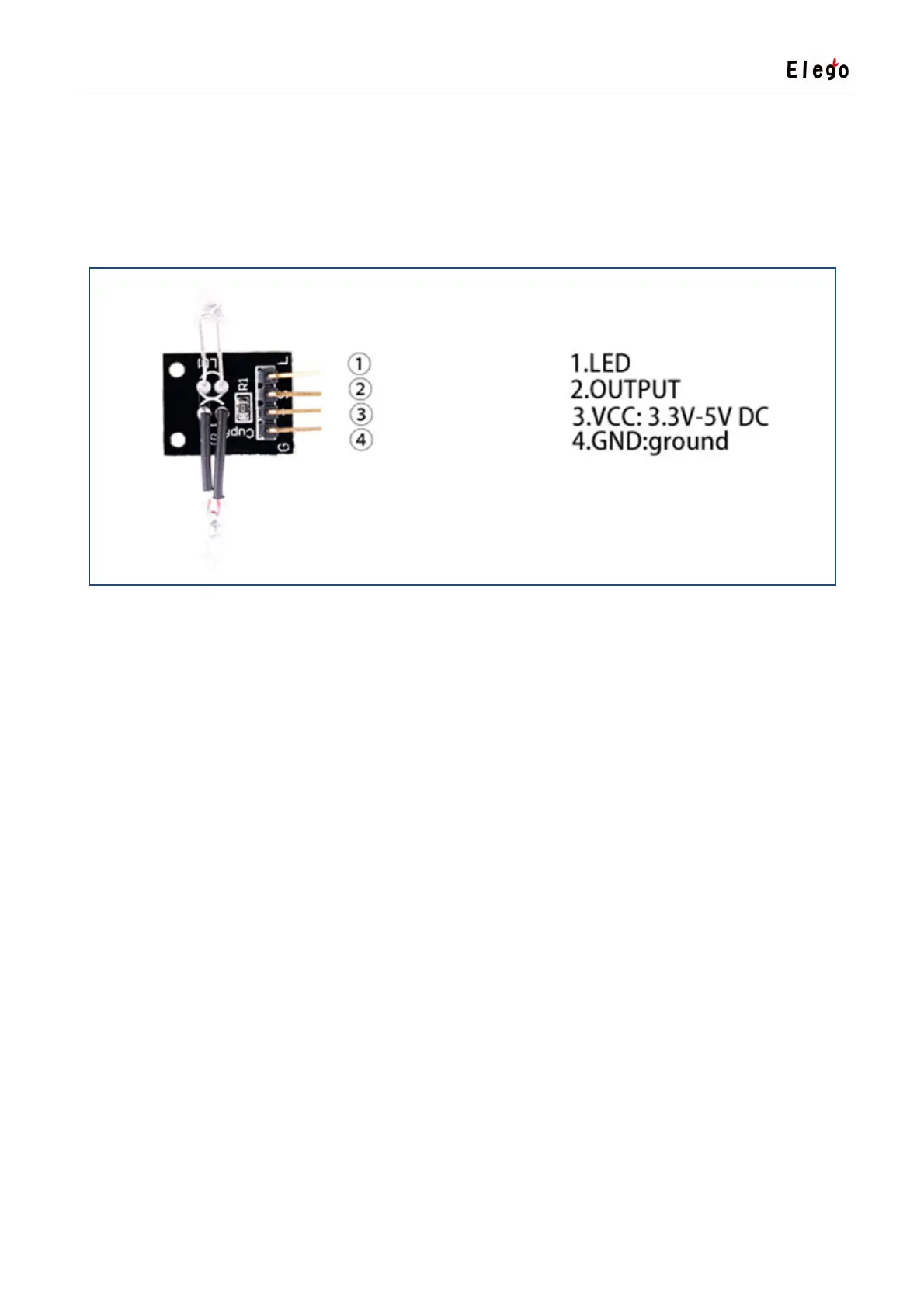

Magic light cup module:
Magic light cup module is a product which can easily interact with the ARDUINO module,
the principle is to use the PWM dimming, change the brightness of the two modules.
Mercury switch provides digital signal, trigger PWM adjustment. through the design program,
we can see the result which is similar to the effect of two cup full of light pouring to each
other.
Connection
