Http://www.elego.cc
37 / 137
Lesson 6 IR RECEIVER AND EMISSION
Overview
In this experiment, we will learn how to use Infrared Receiver and IR Emission module.
In fact now in our daily life they play an important role, a lot of household electrical
appliances are used to this kind of device, such as air conditioning, TV, DVD, etc. Actually it
is based on its wireless remote sensing and it is very convenient by using them.
Component Required:
(1) x Elego Uno R3
(1) x USB cable

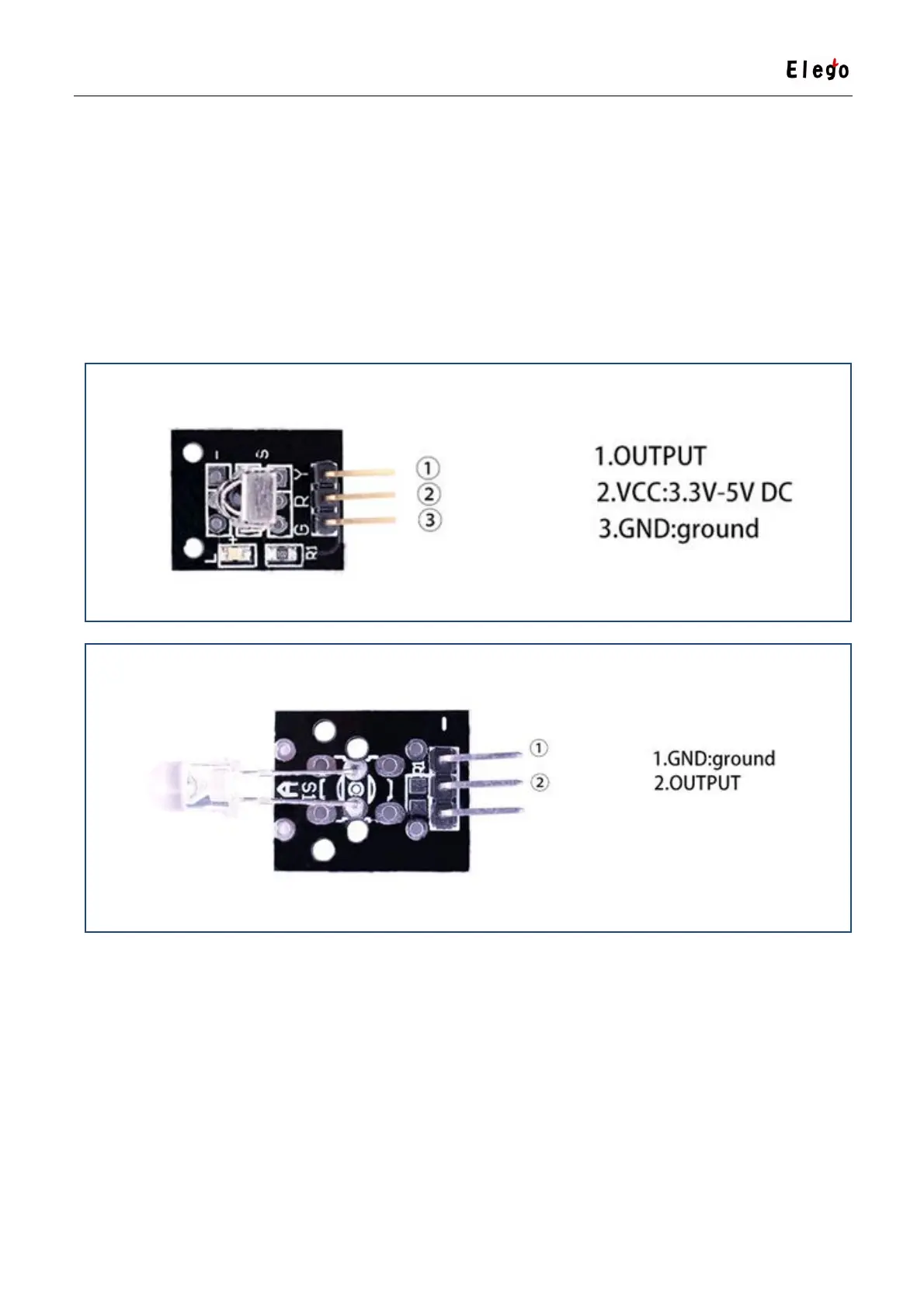

(1) x IR Receiver module
(1) x IR Emission module
