Adjustment: adjust multi-turn resistance
Effective angle: 35 °
Size: 28mm × 23mm
Weight Size: 9g

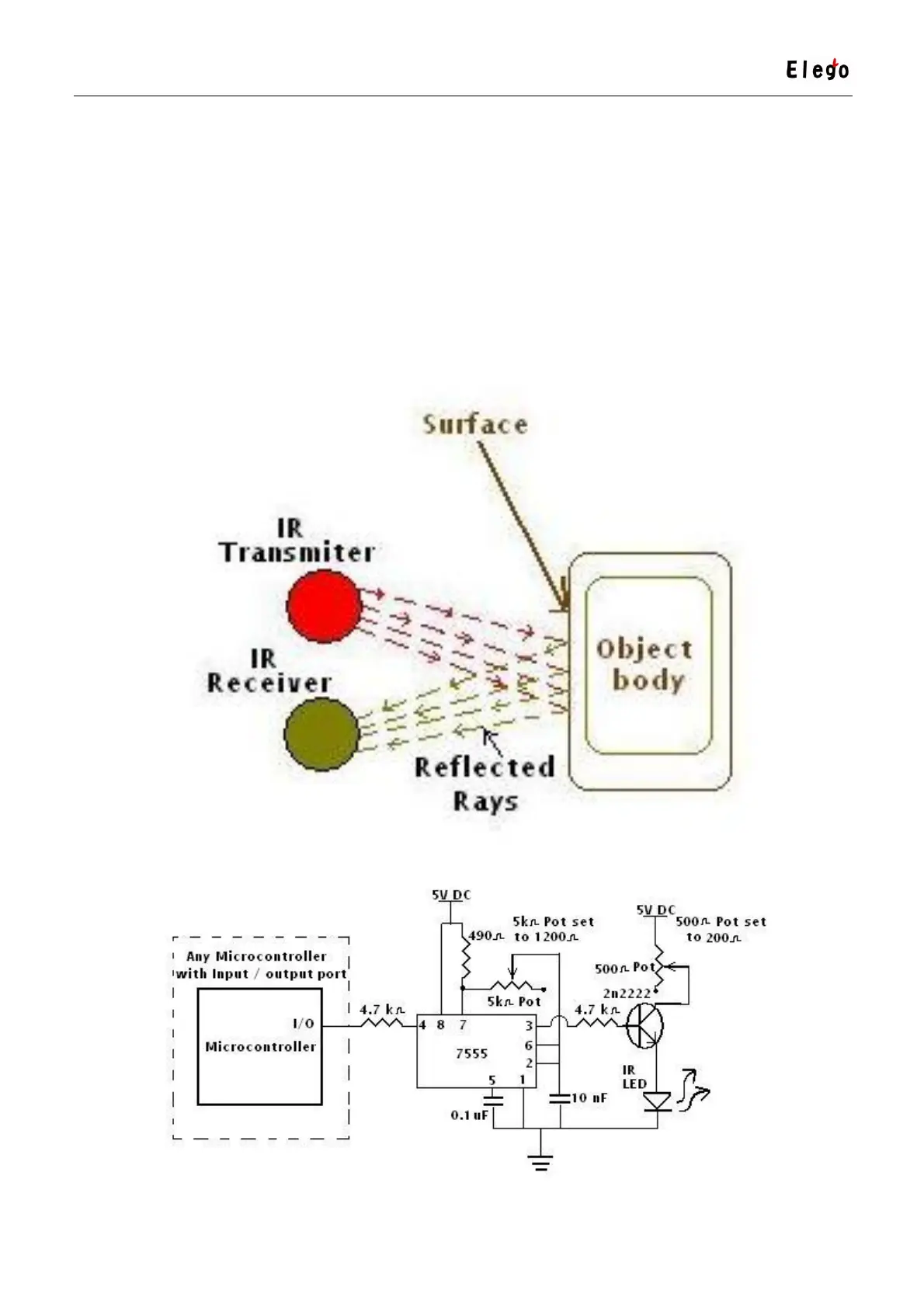

The basic concept of IR(infrared) obstacle detection is to transmit the IR signal(radiation) in
a direction and a signal is received at the IR receiver when the IR radiation bounces
back from a surface of the object.
