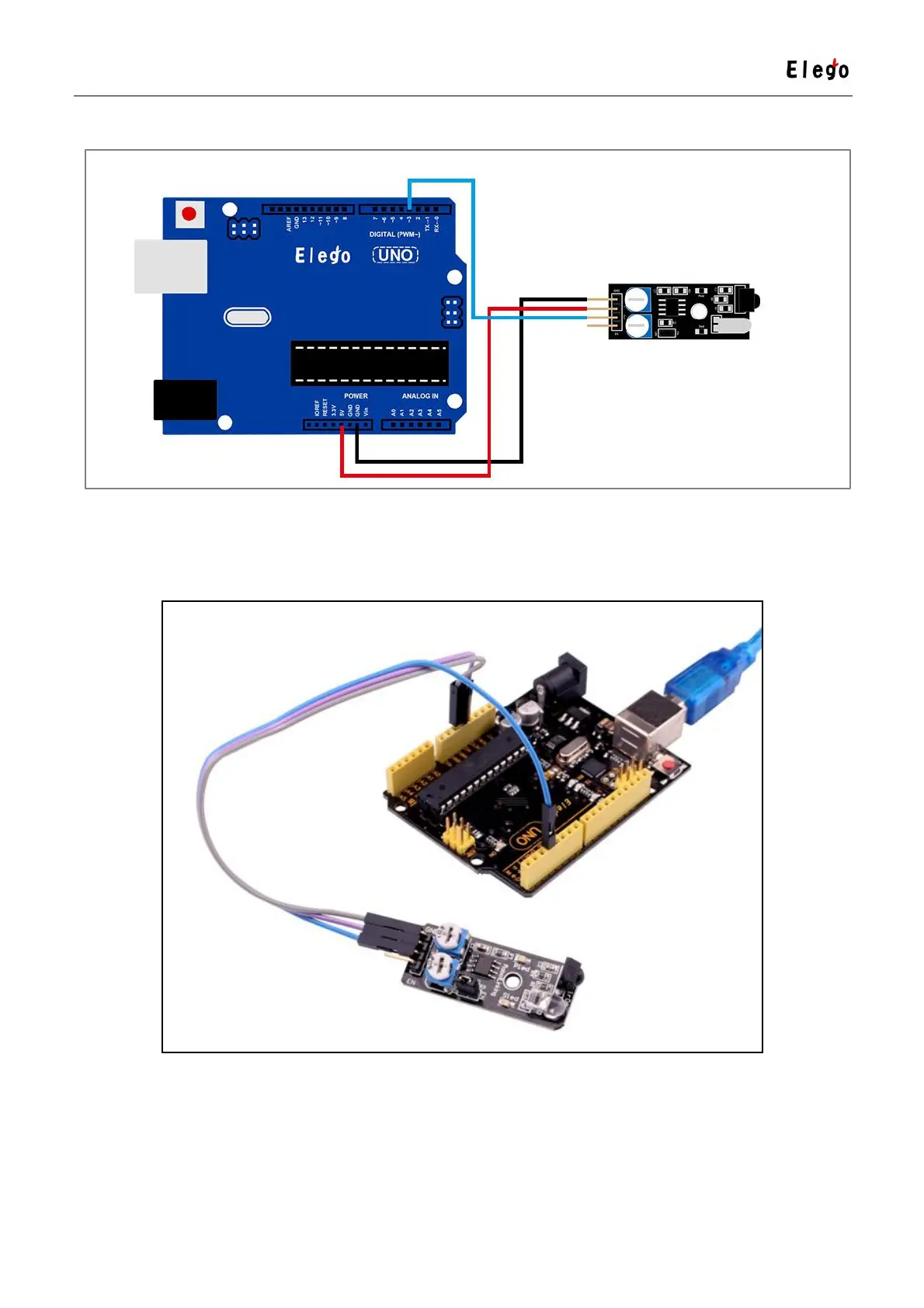

wiring diagram
Result
Here we use the obstacle avoidance module and a digital interface, built-in 13 LED build a
simple circuit, making avoidance warning lamp, the obstacle avoidance Sensor Access
Digital 3 interface, when obstacle avoidance sensor senses a signal, LED light, and vice
versa off.
