20 / 137
Repeatability: ±0.2℃
Range: At 25℃ ±2℃
Response time: 1 / e (63%) 10S
Electrical Characteristics
Power supply: DC 3.5～5.5V
Supply Current: measurement 0.3mA standby 60μA
Sampling period: more than 2 seconds
Pin Description:
1, the VDD power supply 3.5～5.5V DC
2 DATA serial data, a single bus
3, NC, empty pin
4, GND ground, the negative power

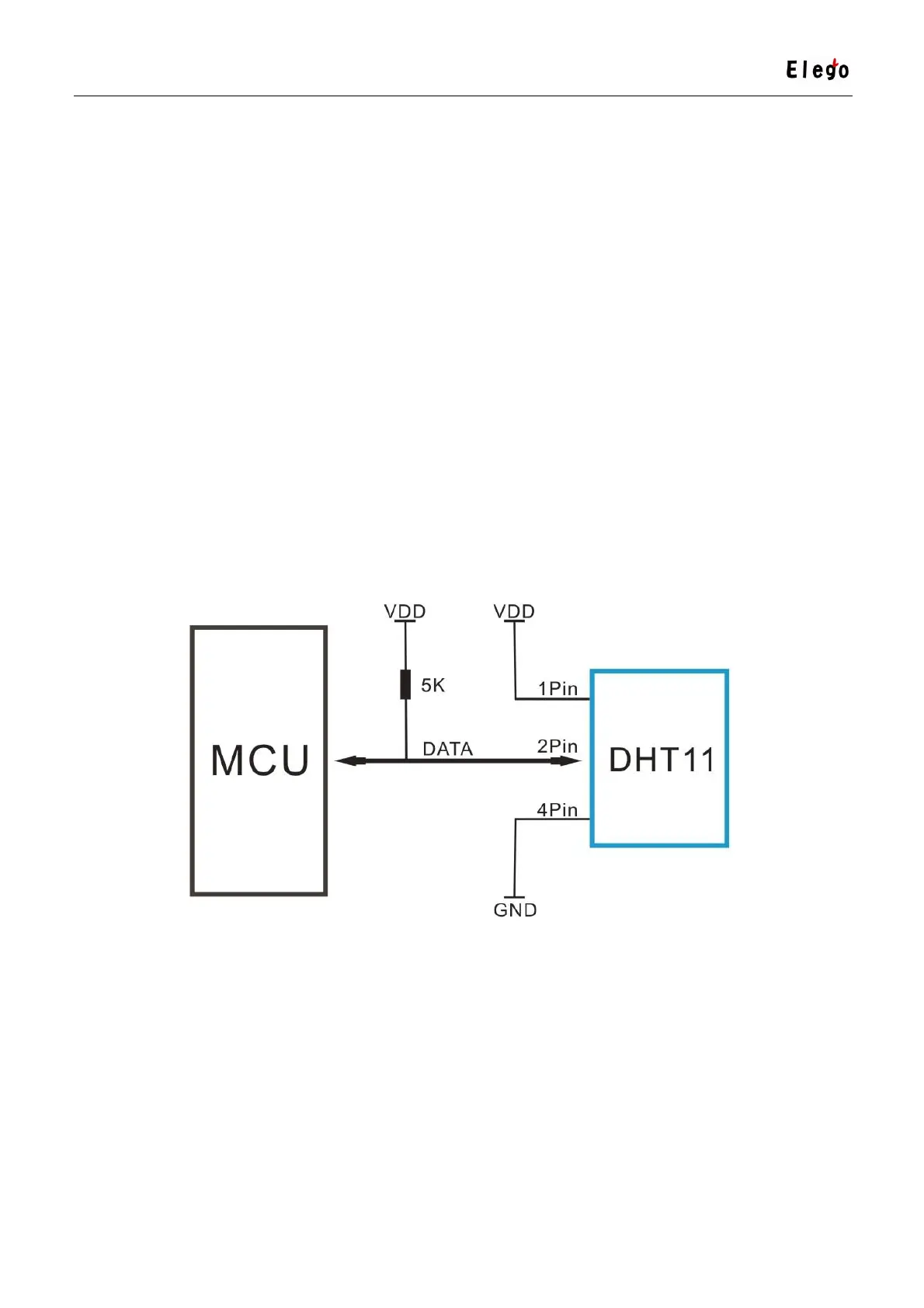

Typical Application
Connection
Schematic
