Result

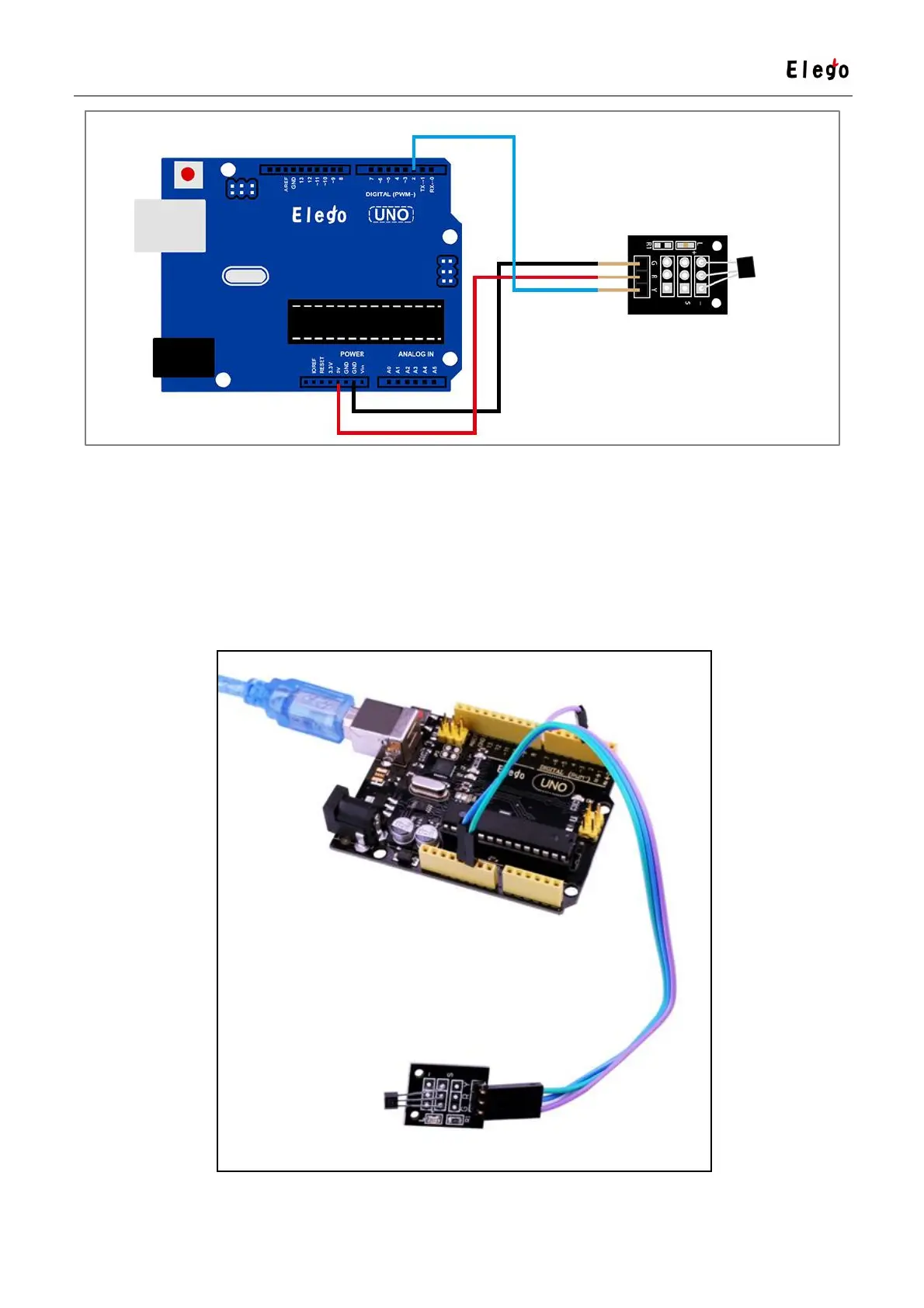

For the hall sensor module, we can choose the output: digital output or analog output. In
the following picture, we use the DO port to output. so we can see that if the hall sensor
sensing the magnetic force, the light will turn on.
