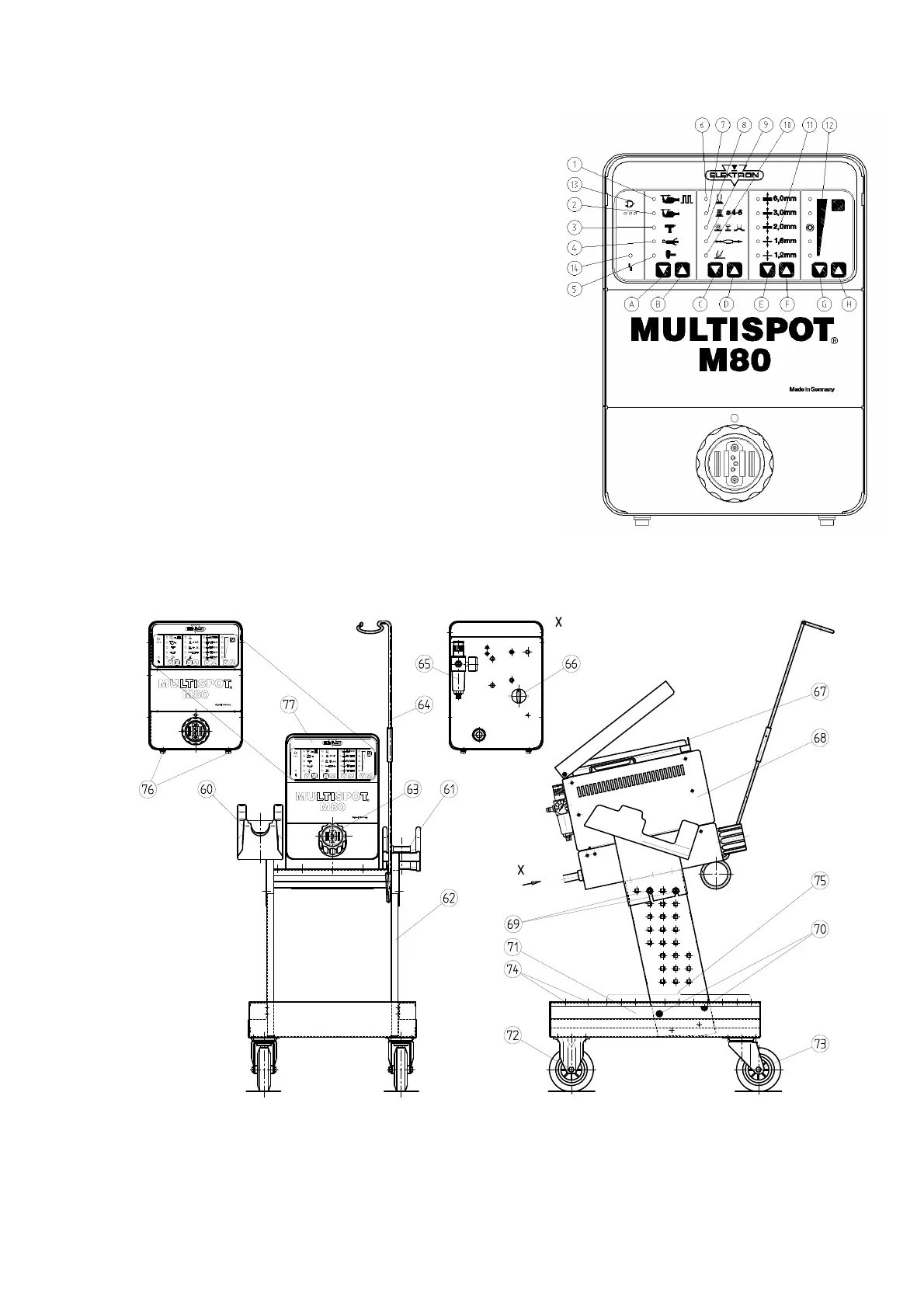

AB Tool selecting keys (manual) see Appendix
CD Gun functions selecting keys
EF Sheet thickness selecting keys
GH Fine adjustment keys time +/–
Tools
1 Tongs, pulse welding
2 Tongs, spot welding
3 Gun
4 QUICKSPOT
5 AIRPULLER
Working with gun
6 Push spot welding
7 Stud welding
8 Beat-out with washers, T-pins, riveting dies
9 High-speed planishing hammer
10 Anneal/shrink
11 Sheet thickness selector
12 Fine adjustment +/–
13 Mains plug symbos with LED “control mains voltage drop” (15, 16, 17)
14 LED malfunction
