Element ELEFT506 User Manual

6
Your new TV is heavy, please consult with professional
wallmount installer to perform this installation.
PREPARATIONS

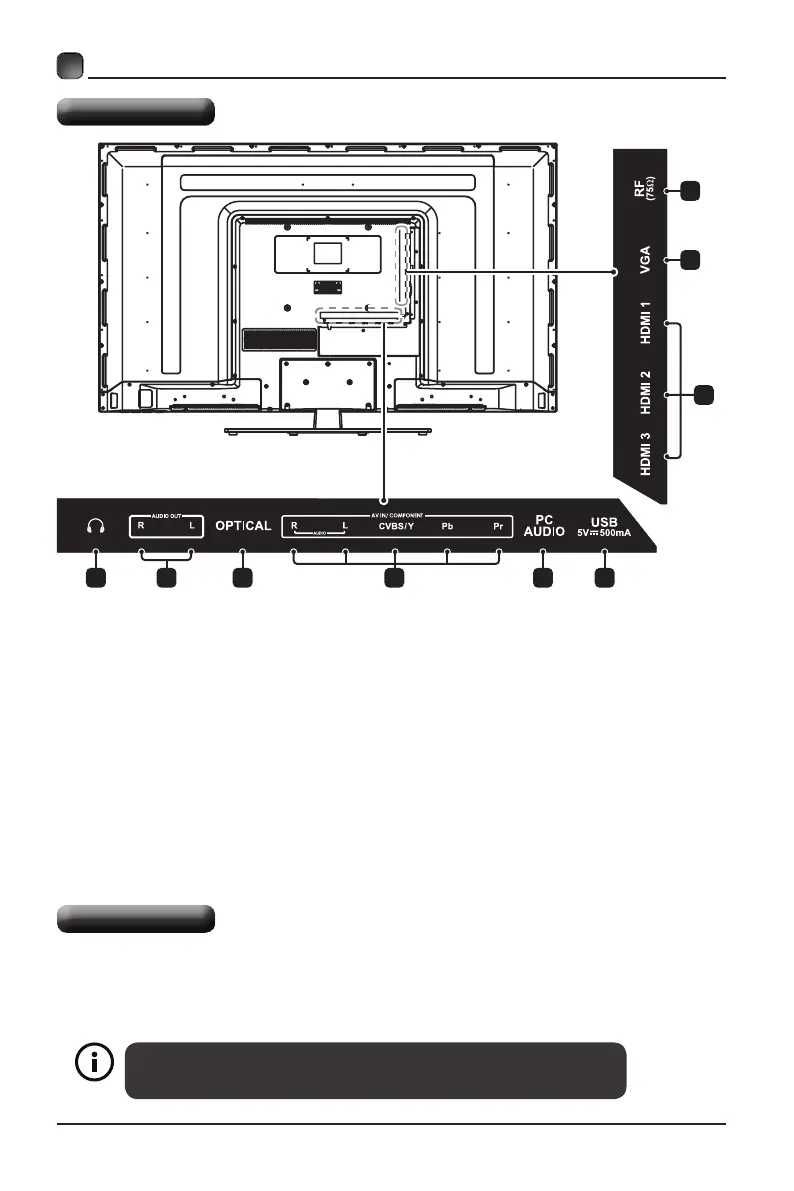

Rear View
The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not
Supplied).Removethescrewsholdingthebasetothebasebracketandliftthebaseaway
(donotremovethebasemountingbrackets).MounttheVESAbracketusing4*M6isometric
threadedscrews(NotSupplied).
Wall Mounting
1 3
5
6
8
9
2
4
7
1. Headphone Output Socket
Connect to the Headphones.
2. Audio Output
Component/AVsharewithAudioOut(L/R).
3. OPTICAL Output
Connect a digital sound system to this
jack.
4. COMPONENT/AV Input
Connect to AV devices with Component
/AV output sockets.
Component Y input is sharing with
compositevideoinput(AV).
Component/AVsharewithAudioin(L/R).
5. PC AUDIO Input
Connect to a computer audio output.
6. USB Port
Connect to a USB storage device to play
photoles.(USBmode)
7. HDMI Inputs
Connecttoa High-Denition(HD)signal
output device.
8. VGA Input
Connect to a computer or other devices
with a VGA interface.
9. Antenna Input (75Ω VHF/UHF)
Connecttotheantenna(75ΩVHF/UHF)
socket with the RF coaxial cable.

Element ELEFT506 Specifications

General

Brand	Element
Model	ELEFT506
Category	LED TV
Language	English
