P220 Stationary Barcode Scanner User Manual 29

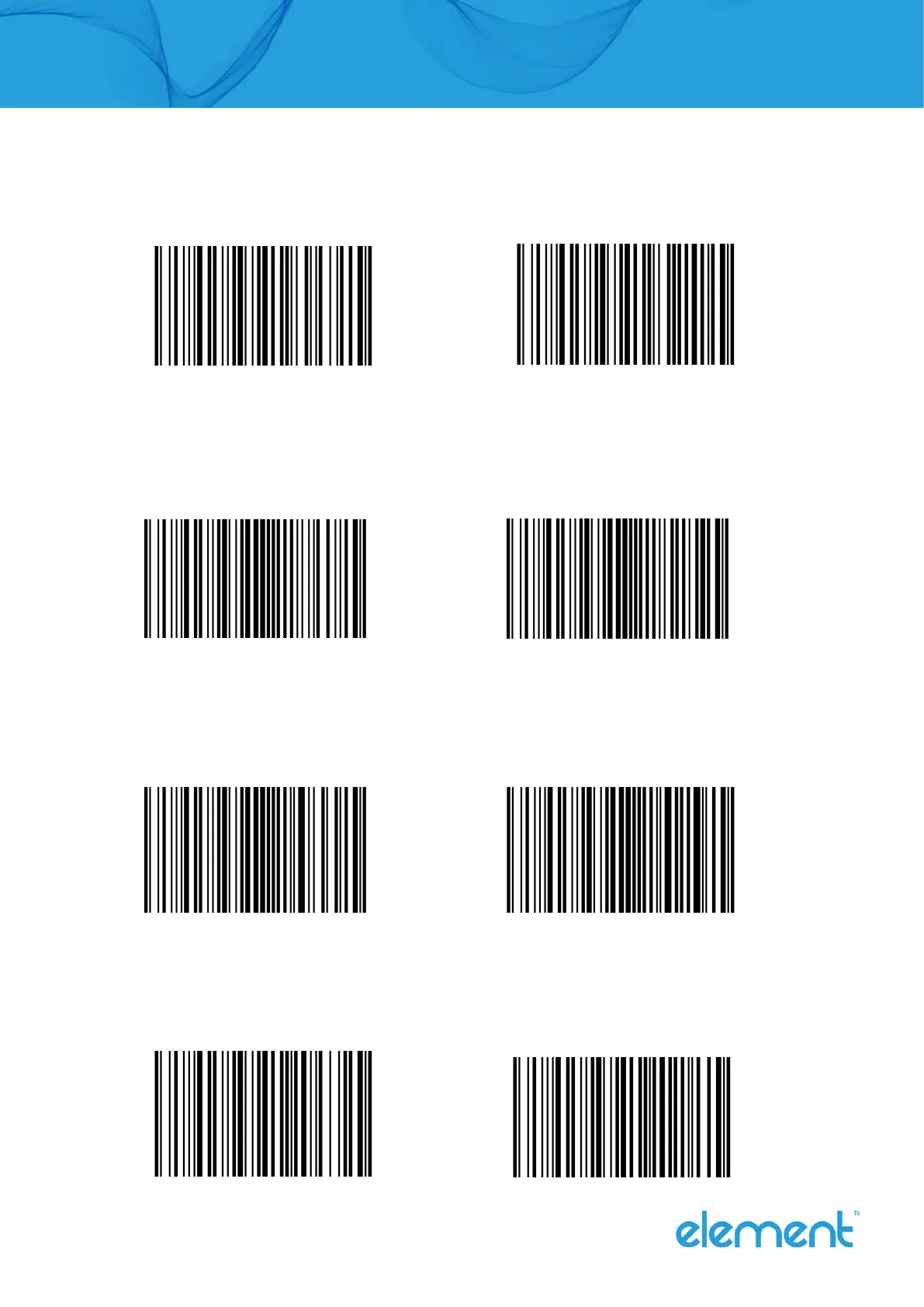

● UPC-E
Enable/disable recognize UPC-E
Enable (Default) Disable
Set to determine whether to transfer the check bit.
The UPC-E barcode data is fixed to 8 characters and the 8th character is the check bit which is
used to verify the correctness of all 8 characters.
Enable (Default) Disable
Set whether to recognize the 2/5-bit extra-codes.
2/5-bit extra-code refers to the 2/5-digit digital barcode that is appended after a normal
barcode.
Enable (Default) Disable
Set whether the result is extended to UPC-A
The chip can expand the decoding results of UPC-E type barcodes to UPC-A type barcodes
according to standard algorithms.
