- 17 -
Plasma TV Service Manual
4. Chassis Layout and Overall Wiring Diagrams

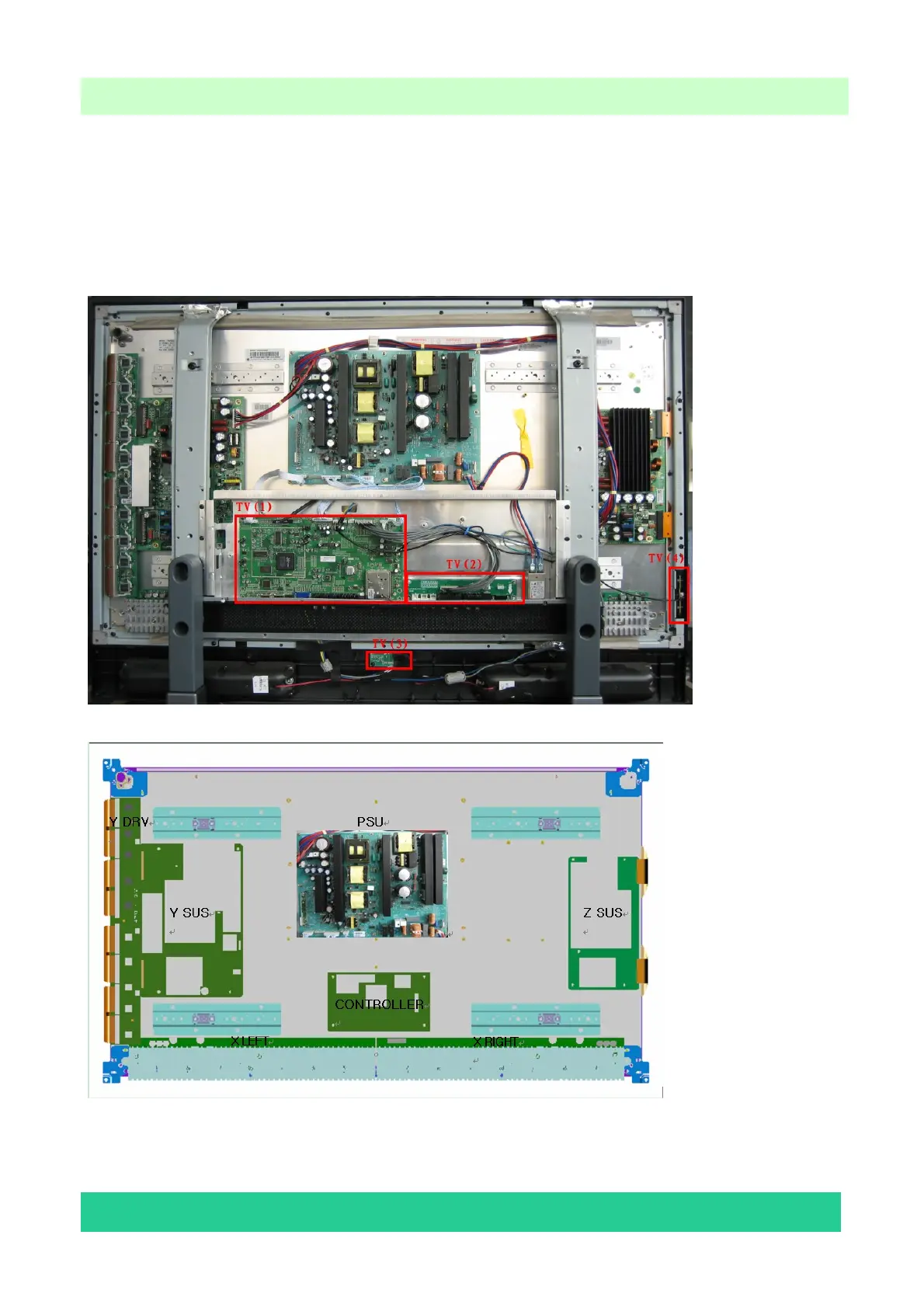

4.1 Boards and Chassis Layout
PLX-4202B
PLX-4202B System
PLX-4202B Panel
