Element PLX-4202B - Page 21

- 21 -
Plasma TV Service Manual
PLX-5002B

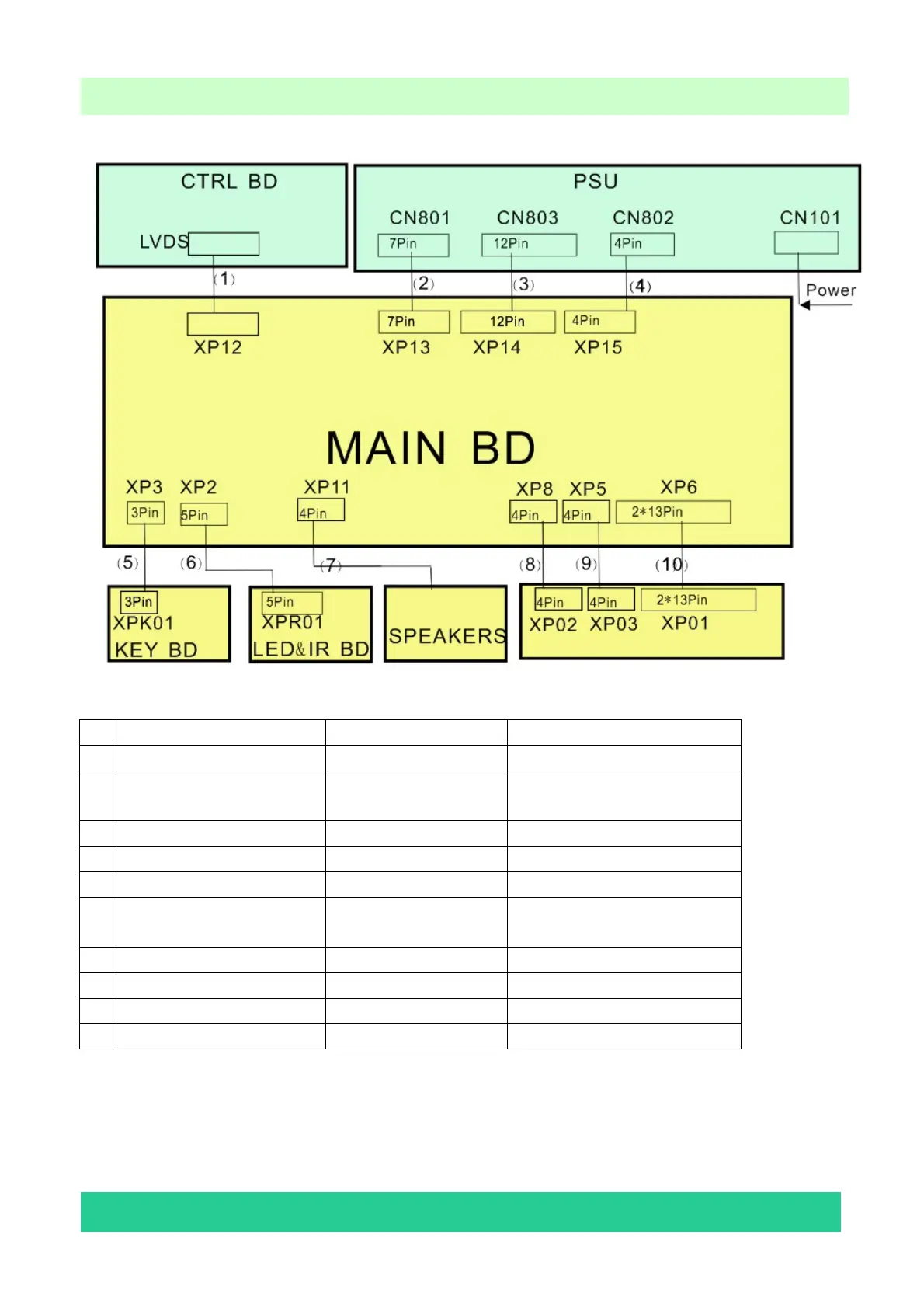

No DESCRIPTION SPECIPICATION NOTE
1
LVDS signal FF-HX19-11 Main BD XP12<-->CRTL BD
2
5V standby, communication
between Main BD and panel
TJC3-7Y-EI-200\ROH Main BD XP13<-->PSU CN801
3
+5V, +12V supply to Main BD TJC3-12Y-EI-200\ROH Main BD XP14<-->PSU CN803
4
Power supply for amplifier TJC3-4Y-EI-200\ROH Main BD XP15<-->PSU CN802
5
Buttons TJC10T-3Y-700-P\ROH Main BD XP3 <--> Key BD XPK01
6
LED & IR TJC10T-5Y-950-P Main BD XP2<-->IR &LED BD
XPR01
7
Audio out put (R/L) TJC3H-4Y-800-850-P\ROH Main BD XP11<-->Speakers
8
Headphone Audio TJC3T-4Y-300\ROH Main BD XP8<-->I/O CON BD XP02
9
Serial data TJC10T-4Y-300\ROH Main BD XP5<-->I/O CON BD XP03
10
Video/Audio signal HX-2026C250 Main BD XP6<-->I/O CON BD XP01
