- 15 -
Plasma TV Service Manual

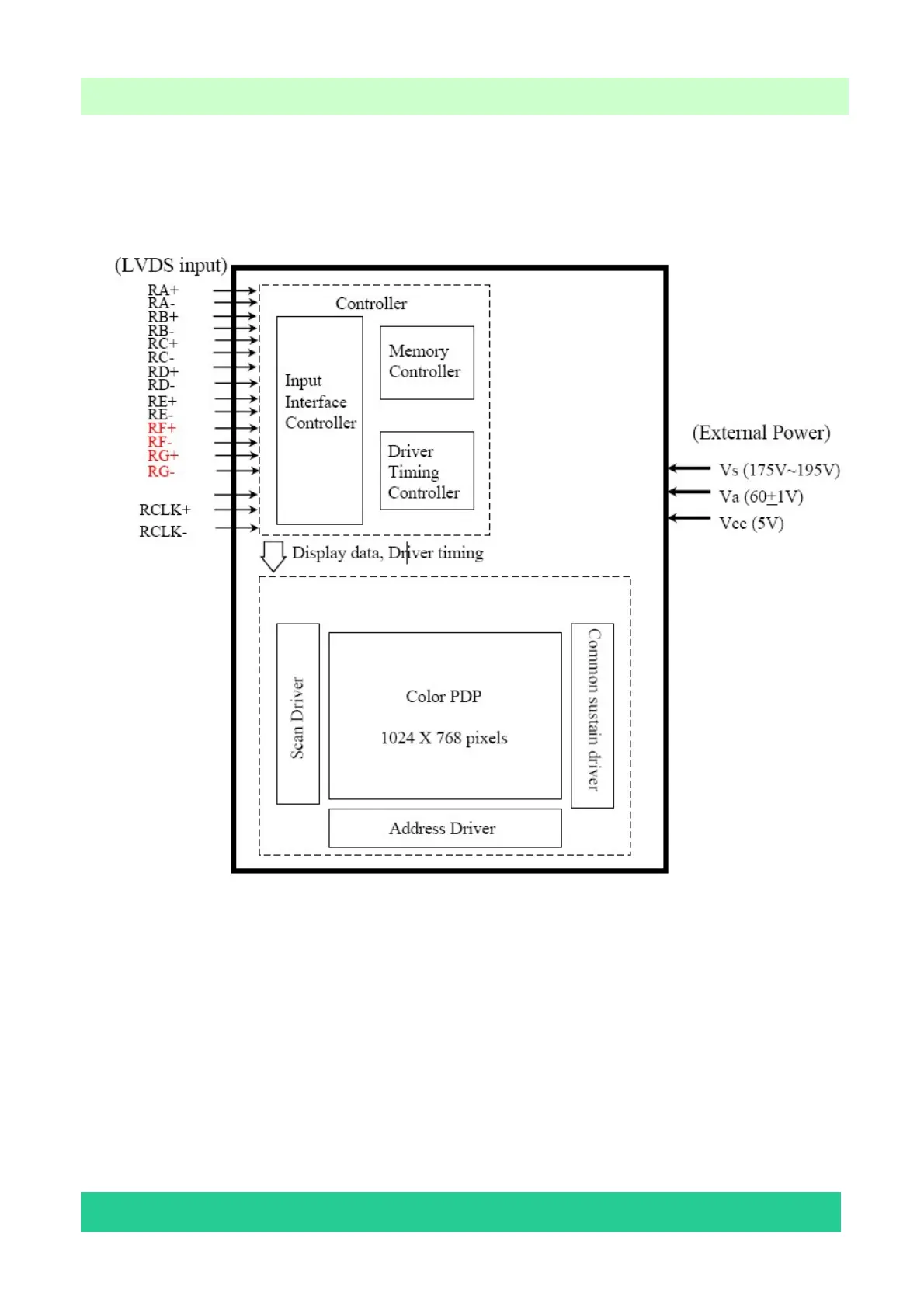

3.2 BLOCK DIAGRAM
3.2.1 PLX-4202B
Note: Applied Voltage level is specified at the time when Full-White pattern is displayed on the panel.
