Plasma TV Service Manual
No Description Part No Type/Model
TV(1) Main BD 113043 RSAG2.908.1072\ROH
TV(2) In/Out connector board 113178 RSAG2.908.1080\ROH
TV(3) LED / IR Board
TV(4) Key Board
113179 RSAG2.908.1081\924\ROH
4.2 Connectors

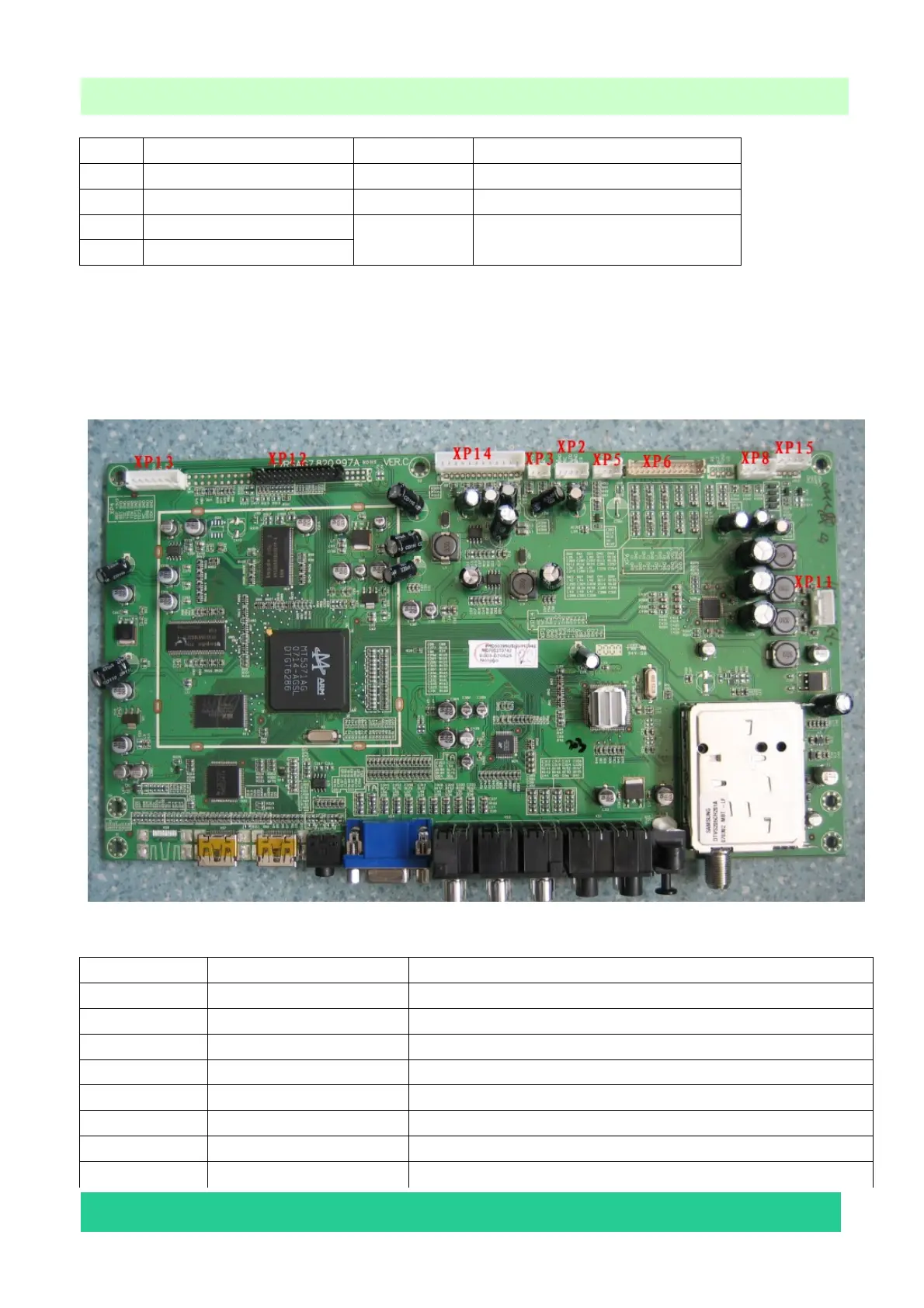

Main Board
Location No. Specification Description
XP13 TJC3-7A\ROH Power from PSU BD P801
XP12 FF-HX19-10\ROH LVDS signal between MB and panel
XP14 TJC3-12A\ROH Power from PSU BD P803
XP3 TJC10-3A\ROH Buttons (connect key BD and main BD)
XP2 TJC10-5A\ROH IR, LED
XP5 TJC10-4A\ROH Serial Port connector
XP6 A2006WSO-2×13P\ROH Video/Audio signal
XP8 TJC3-4A\ROH Headphone Audio Signal
