Rigid Balanced Flue Connection Possibilities

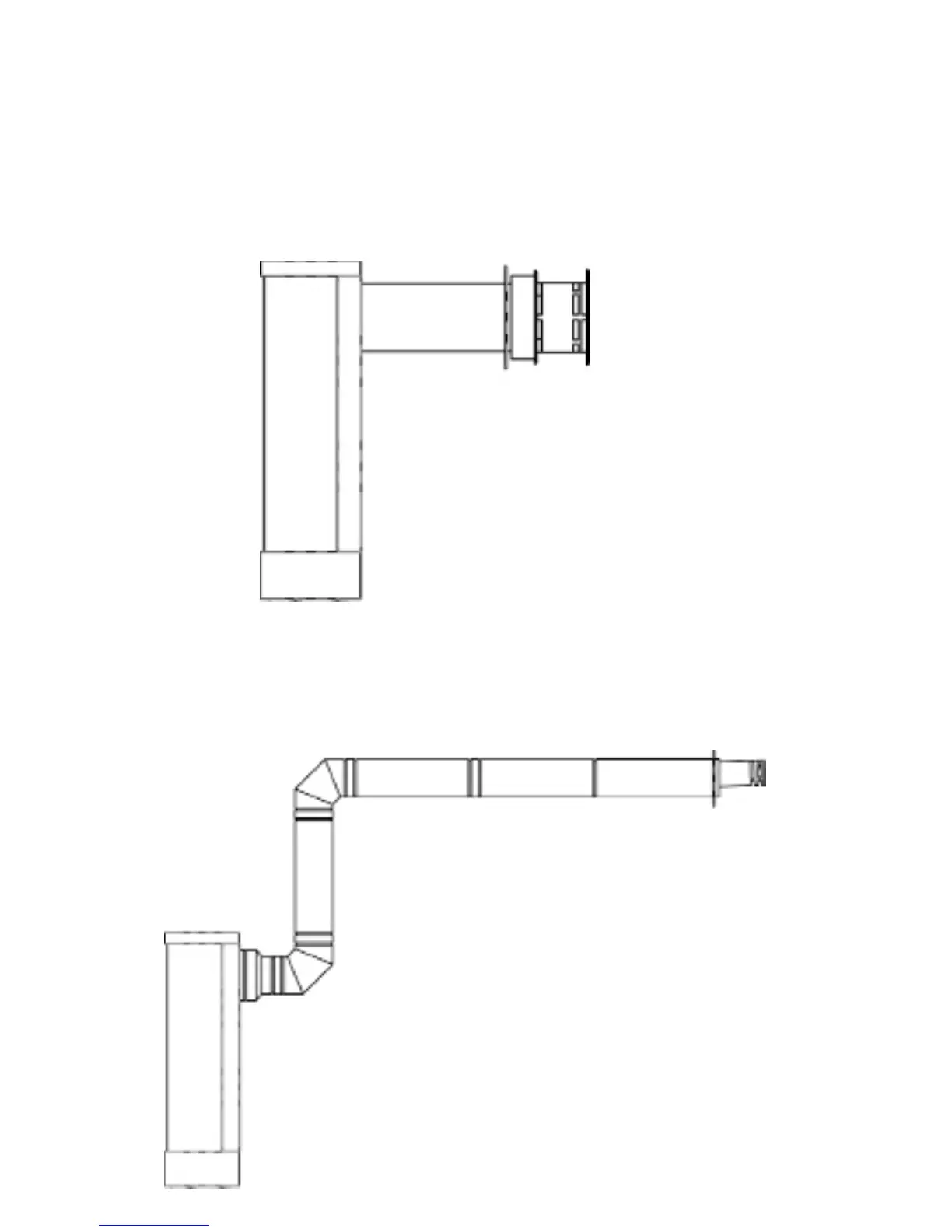

Horizontal Wall Termination
Sirius has a rear back ue and can be installed directly with a wall terminal 200/130. In this situ-
ation the maximum horizontal ue is 1.5 meter.
When using a direct wall terminal it is important to t the 60 mm ue restrictor across the ue
outlet inside the re.
Use ue size 200/130
1 meter vertical gives maximum 3 meter horizontal
2 meter vertical gives maximum 6 meter horizontal
Horizontal Wall Termination with elbow
