INSTALLER INFORMATION
Installing the controls
Electronic Ignition System RCE GV60)
This requires no external electrical power to
operate. The receiver unit has only one lead. This
lead has one single plug. This plug ts into the
connector block on the front of the Gas Control
unit, the orientation of this plug is important.
Install the batteries into the receiver and the
handset; these will be 4 x 1,5V AA alkaline and
3 x AAA alkaline respectively.
Setting the electronics code:
The receiver has to select the code of the handset,
please follow the procedure:
1) Power up handset
2) Power up receiver (LED ashes)

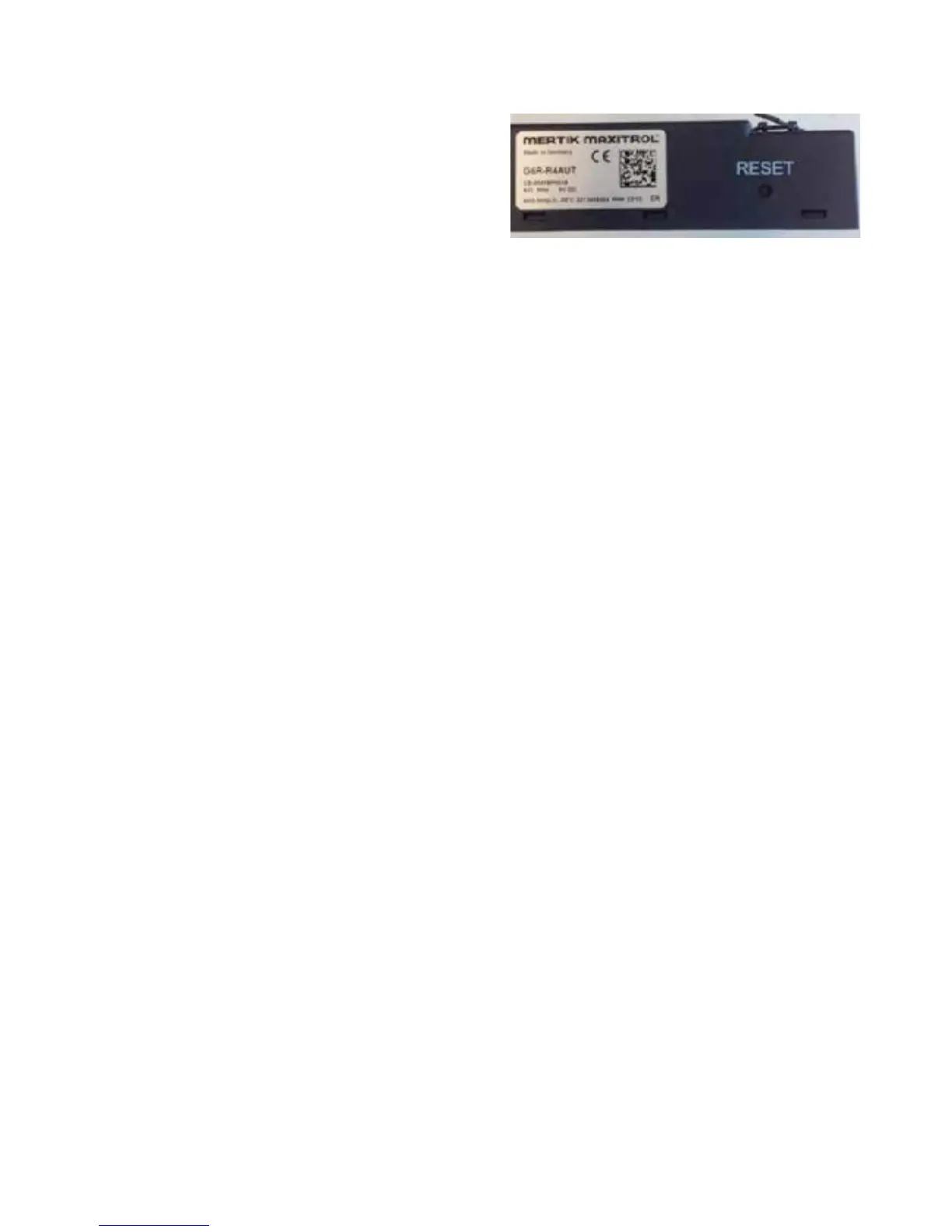

3) Push “reset” button on receiver till long beep
4) Push “ame low” button on sender till short
beep
5) Gas re is now ready for ignition. See options
in user part.
The receiver unit can be hidden away under or
behind the stove, ensure that the receiver is
located in an area that has a temperature be-
low 60ºC, and that the customer knows where
the receiver is for future battery replacement.
Check the system.
23
INSTALLER INFORMATION
Installing the controls
Electronic Ignition System RCE GV60)
This requires no external electrical power to
operate. The receiver unit has only one lead.
This lead has one single plug. This plug ts into
the connector block on the front of the Gas Con-
trol unit, the orientation of this plug is important.
Install the batteries into the receiver and the
handset; these will be 4 x 1,5V AA alkaline
and 3 x AAA alkaline respectively.
Setting the electronics code:
The receiver has to select the code of the hand-
set, please follow the procedure:
1) Power up handset
2) Power up receiver (LED ashes)
3) Push “reset” button on receiver till long beep
4) Push “ame low” button on sender till short
beep
5) Gas re is now ready for ignition. See options
in user part.
The receiver unit can be hidden away under
or behind the stove, ensure that the receiver
is located in an area that has a temperature
below 60ºC, and that the customer knows
where the receiver is for future battery re-
placement.
Check the system.
