INSTALLER INFORMATION
Installing the wall bracket:
Determine the position for the ue and x the
metal wall bracket to the wall with the ue
located in the center of the circular cut out. The
wall should be made out of non-combustible
materials only.
Now you can hang the re on the wall bracket.
For this purpose the re has some slots.
Installing the ue restrictor;
When using a wall terminal install the 60 mm
ue restrictor.
When using a roof terminal install the 80 mm
ue restrictor.
The 60 mm ue restrictor is located inside
the re. Undo one of the screws and slide the
restrictor over the ue outlet.
The 80 mm ue restrictor is delivered
seperately with the appliance.
Mounting the cover plate of the ue outlet:
Now place the cover plate in front of the ue
outlet using the slots in the re.
Installing the re
Connect the re to the gaspipe. Install the GV60
remote control set and test the appliance.Now
the log set can be placed following instructions
on page 24.
CHECK CORRECT WORKING OF THE
APPLIANCE

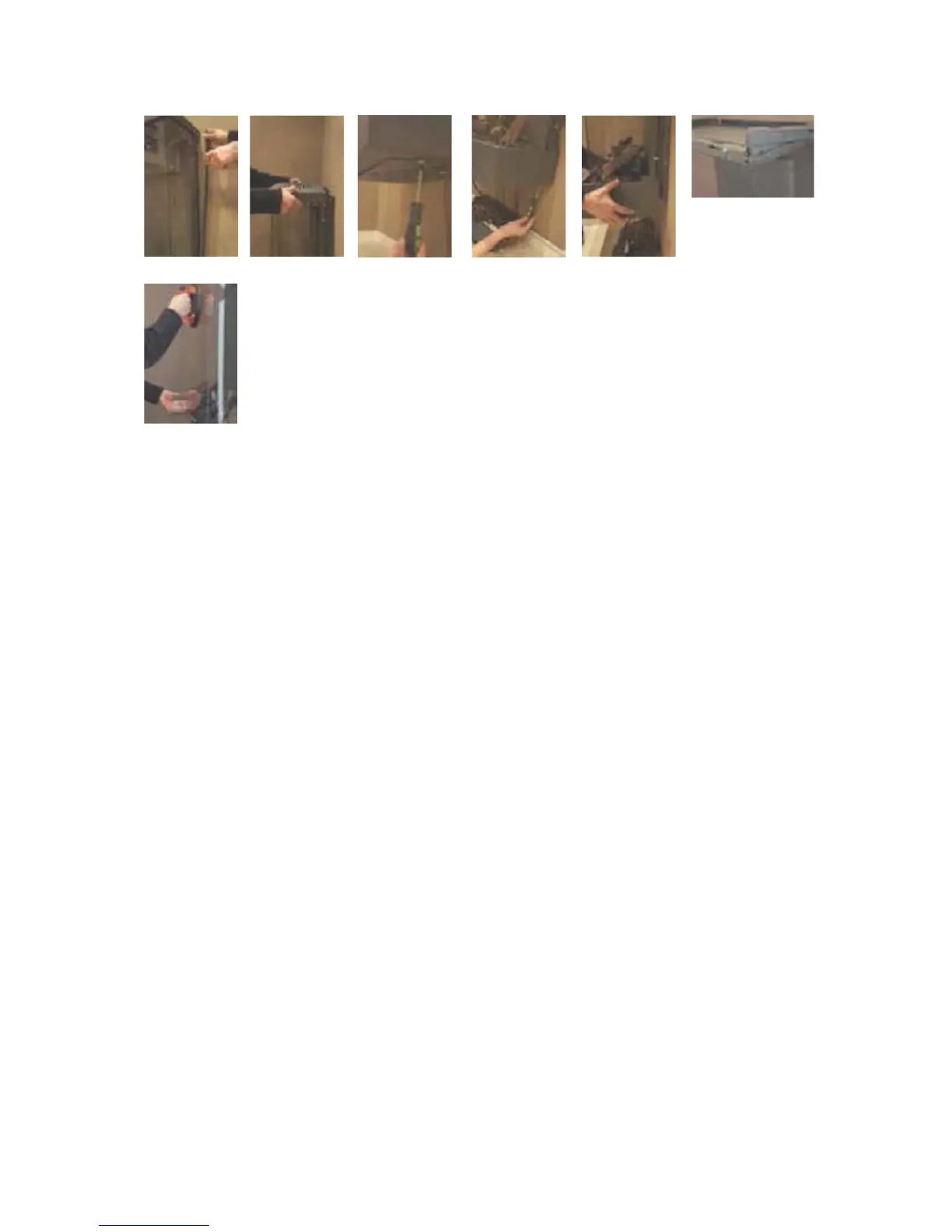

Mounting the frame:
After checking of proper working of the re
the metal bottom frame can be placed over
the glass and tightened with the screws. Then
mount the bottom plate again. Place the top
frame over the glass and click the metal side
panel, using the magnets, on their positions.
