56 Use instructions

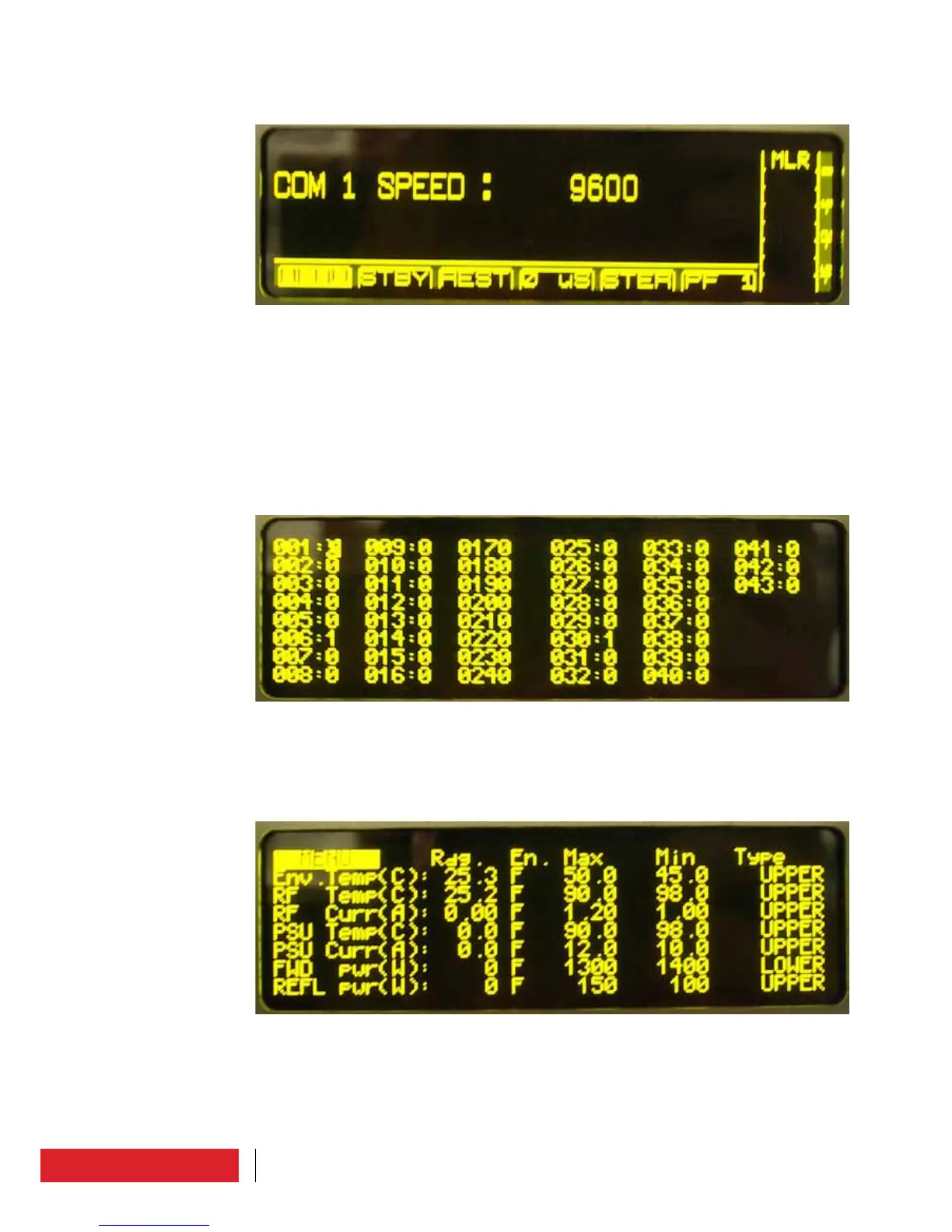

7.1.30 COM1 SPEED SET
In this screen you can set the port speed (we recommend setting the value to 9600.)
7.1.31 Enable Alarms SMS
In addition to a “state” alarm management it can also be used an “event” manage-
ment.
Alarms for which you enable this mode of management are put into a buffer.
If the corresponding alarm is assigned value “0” means it is off, while the value “1”
means that is enabled to be handled in “event” mode.
This feature is only available via link on Omron Protocol.
For details on the list of possible alarms see the paragraph “Alarms/events list” in “Use
instructions” paragraph.
7.1.32 User Alarms Data
For some alarms you can set specific conditions for activation.
In this screen is displayed the current value of the measured parameter of the condition
of the alarm, if the alarm is enabled or not, it sets a minimum and maximum value for
the parameter and choose the type of condition (upper, lower, inside, outside).
7.1.33 User Alarms Timers
For the alarms mentioned above can also set a time for which the condition must occur
to consider the alert real (“dlay). From this screen you can also view the progress of the
timer that keeps track of this time and the enable alarm via a status flags.
