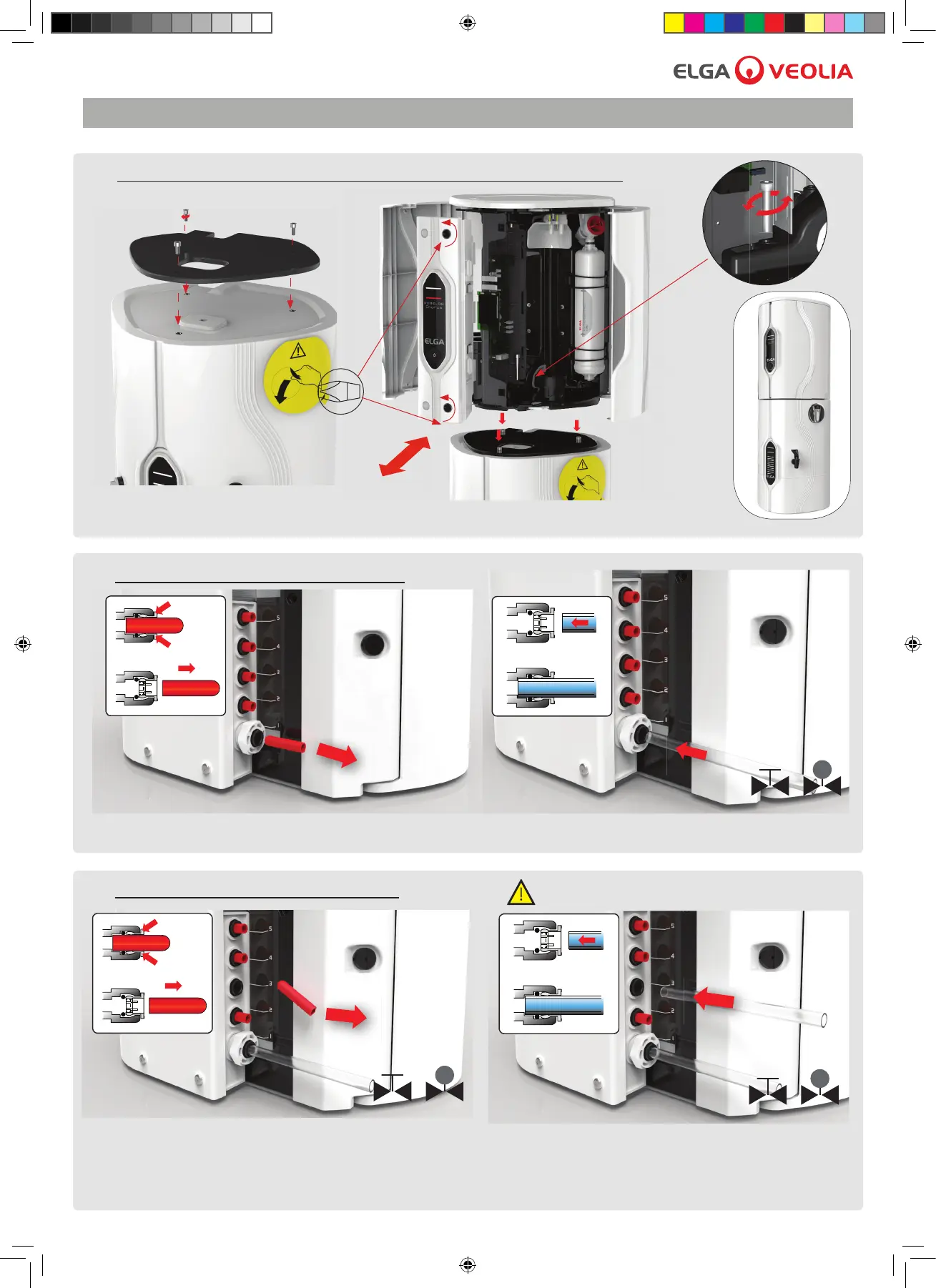

ELGA PC220DIBPM3 - 1 b MODULAR STACKING, RESERVOIR UNDERNEATH (OPTIONAL); CONNECT THE WATER (PORT No. I); CONNECT THE DRAIN (PORT No.3); Drain Pipe Caution

CONNECT THE WATER (PORT No. 1)
2
a. Remove the transit plugs from the water
inlet connection.
b. Using the tube supplied,  rmly push one end
securely into the water connector.
8mm Ball Valve 2 Way
or
CONNECT THE DRAIN (PORT No.3)
3
a. Remove the transit plugs from the water
outlet connection.
Connect the other end of the drain and over ow tubes to a sink or suitable drain capable of handling at least 1.5 l/min.
The drain point should have a gravity fall below the level of the unit and any connections direct to drain should have
an air-break device  tted.
b. Using the tube supplied,  rmly push one end
securely into the water connector.
Ensure drain pipe is not in waste water.
CAUTION!
or
or
MODULAR STACKING, RESERVOIR UNDERNEATH (OPTIONAL)
1b
a. Screw down the reservoir plate.
• Load bearing plate 15/30L
b. Place on top of reservoir, line up with
bolt heads. Screw in joining bolt (FXBOYR301716).
SET - UP
