DASHBOARD INFORMATION
Settings that are not enabled are not displayed in
the dashboard. For example, if the modelling lamp is
switched off, the modelling lamp symbol does not appear
on the dashboard.

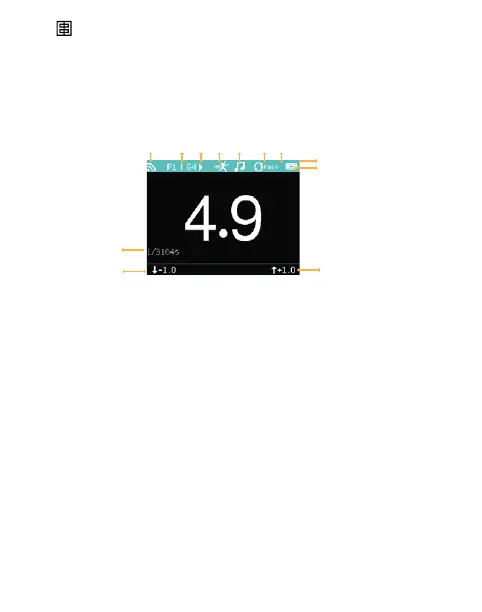

TTL MODE
The TTL (Through the Lens Metering) mode allows you to
access fully automatic exposure setups according to your
digital camera distance. The TTL values are automatically
saved when passing to the manual mode.
1. Skyport synchronisation.
2. Skyport frequency channel and group number
3. Photocell status
4. Action mode (fast ash duration over the entire power range)
5. Ready beep
6. Fast mode (fast recycling)
7. LED modelling lamp status
8. Increase ash power by 1 f-stop
9. Decrease ash power by 1 f-stop
10. Flash duration value. The ash duration is only visible at normal x-sync
shutter speeds (1/125 or 1/250s depending on the camera)
11. The colour in the upper bar indicates the Group
12. Battery status
17 — ELINCHROM FIVE User manual
