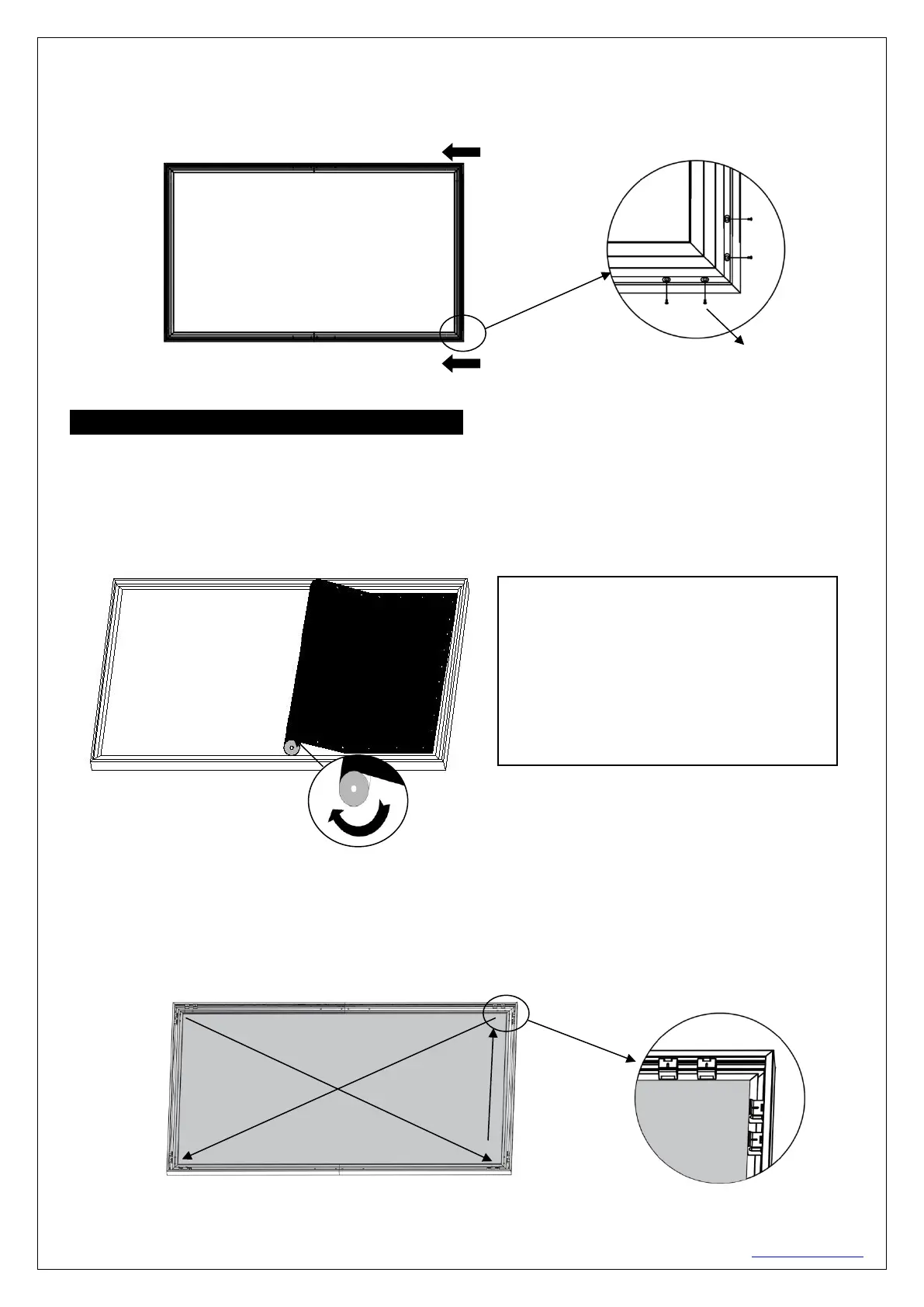

5. Join all four frame parts together following the steps shown below. (Fig.1.3)
Note: When assembled, please push simultaneously the two ends of the long frames.
Attaching the screen material to the frame
1. Make sure the screen material and frame are both lying face down on a clean, dry, and non-abrasive Protection
Sheet (k) and please wear installation Gloves (j) before install screen material.
2. Carefully unroll the material inside the frame. (Fig.2)
Please note the material will be noticeably smaller than the frame, as the material must be stretched to create a
sufficient amount of tension for perfect material flatness.
3. Attach the fix plates.
(1) Stretch the material to the corner and insert the screen material’s edge in the groove of the frame. While one
hand holds the material in place the other hand snaps in the push Fix Plates (e).
(2) Begin by securing the four corners in the following sequence A→B→C→D (Fig.4).
Notes：
• Make note of the label to help distinguish the
back and front side.
• Unroll the screen material face down
• Keep the screen material as close as possible
to the frame and do not allow it to scratch
against any part of the frame.
(Fig.2)
M5*6 Screws (d)
(Fig.1.3)
B
D
A
C
(Fig.4)
