Elite Screens ezFrame 2 Series User Manual

Rev. V10312023DT (DS0280 / DZUG0265) 5 www.elitescreens.com

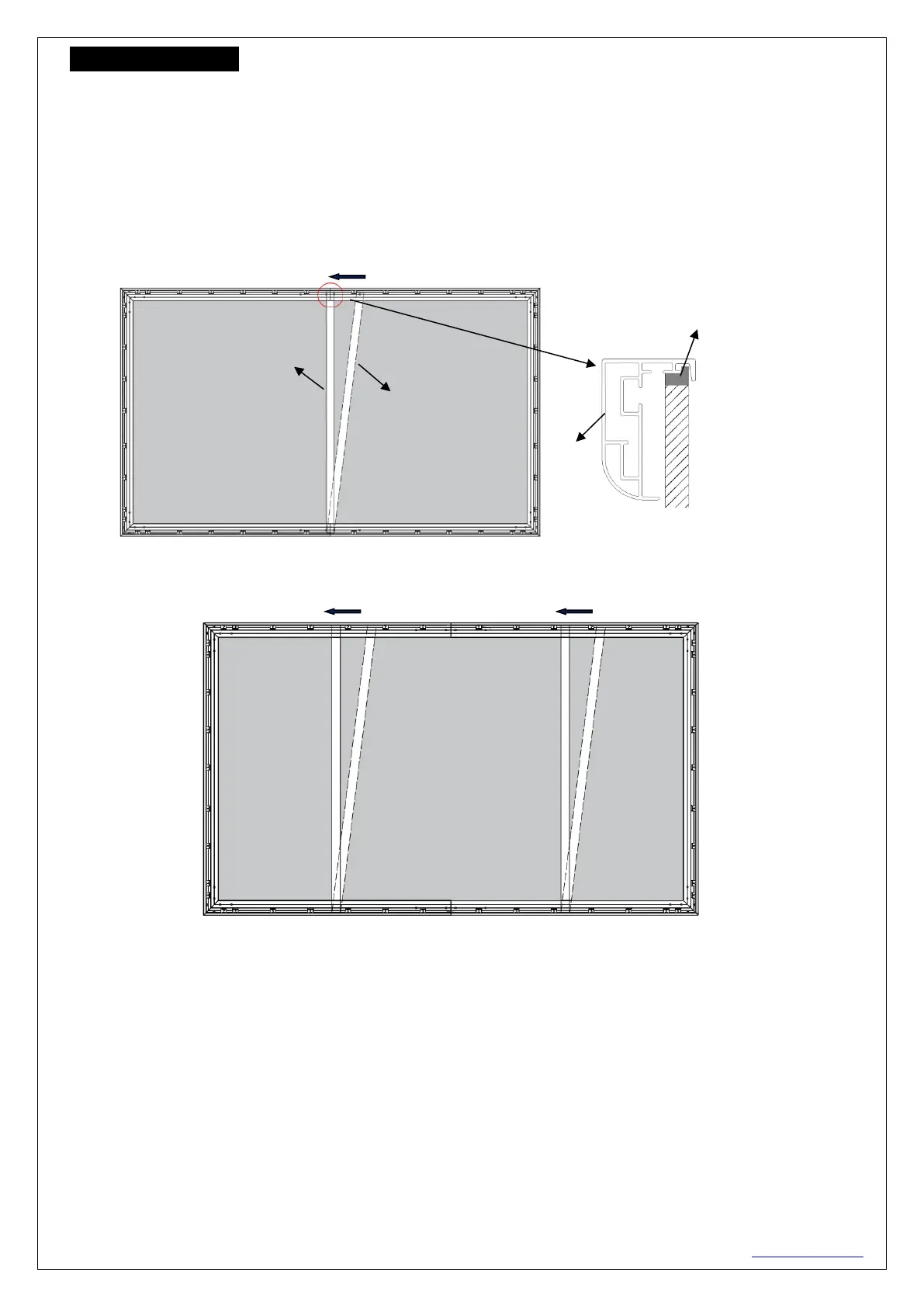

Center Support Bar
1. Insert the Center Support Bar (i) into the upper top groove on the back of the frame (not the one where the fix
plate inserts) with the bottom end near the approximate center point of the frame and rotate it in at an angle so that
both ends of the bar are in alignment with the groove (see Fig.8 and Fig.9 below for details).
Note: The buckle on the movement path of the support rod needs to be removed first
Diagonal models 150" (include 150") and below require 1 x Center Support Bar
Diagonal models above 150" (Not including 150") require 2 x Center Support Bars
2. Slide the top end of the bar into the top center point of the frame to complete the center support bar installation.
This will provide added stability to your frame and added tension to the material.
Frame
Center Support Bar (i)
Start position
Finished position
Push
(Fig.8)
(Fig.9)
Push
Push
