Ceiling M10 Anchor

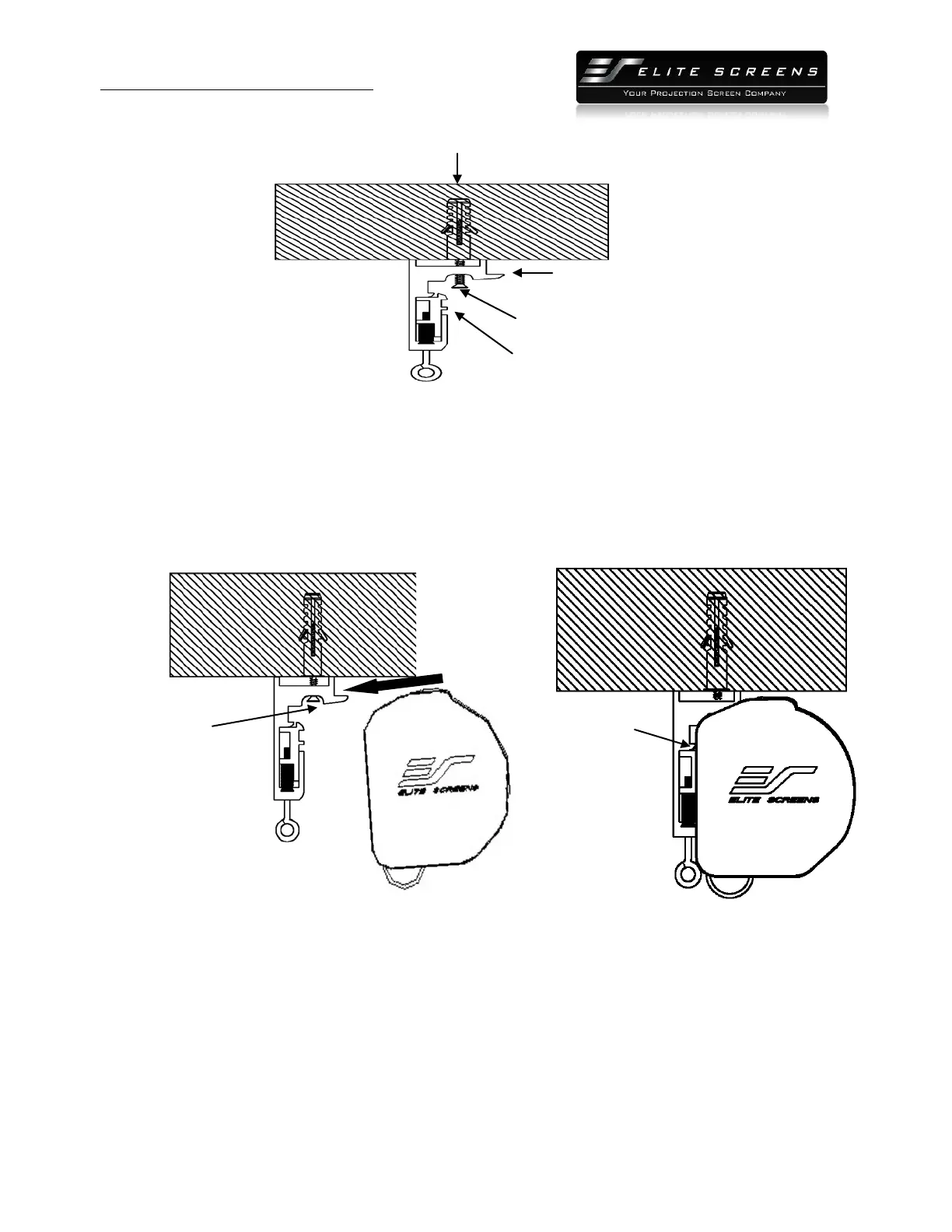

3. Attach the screen to the Mounting Bracket by inserting the top of the case to the first Fix
Plate, and securing the back of the case to the second Fix Plate. Make sure the case slots
are securely attached to the Hanging Bracket.
Suspended Ceiling using Chains
(additional hardware required)
1. You can also hang the screen on a ceiling by using chains (not included).
2. Connect the Suspended Ceiling Bracket Connector (d) to the Mounting Bracket (a) and
secure with the M5x15 Screws& Bolts (e).
Mounting Bracket
Fix Plate 1
Mounting Bracket
Fix Plate
Fix Plate
