Flush Mount to the Ceiling

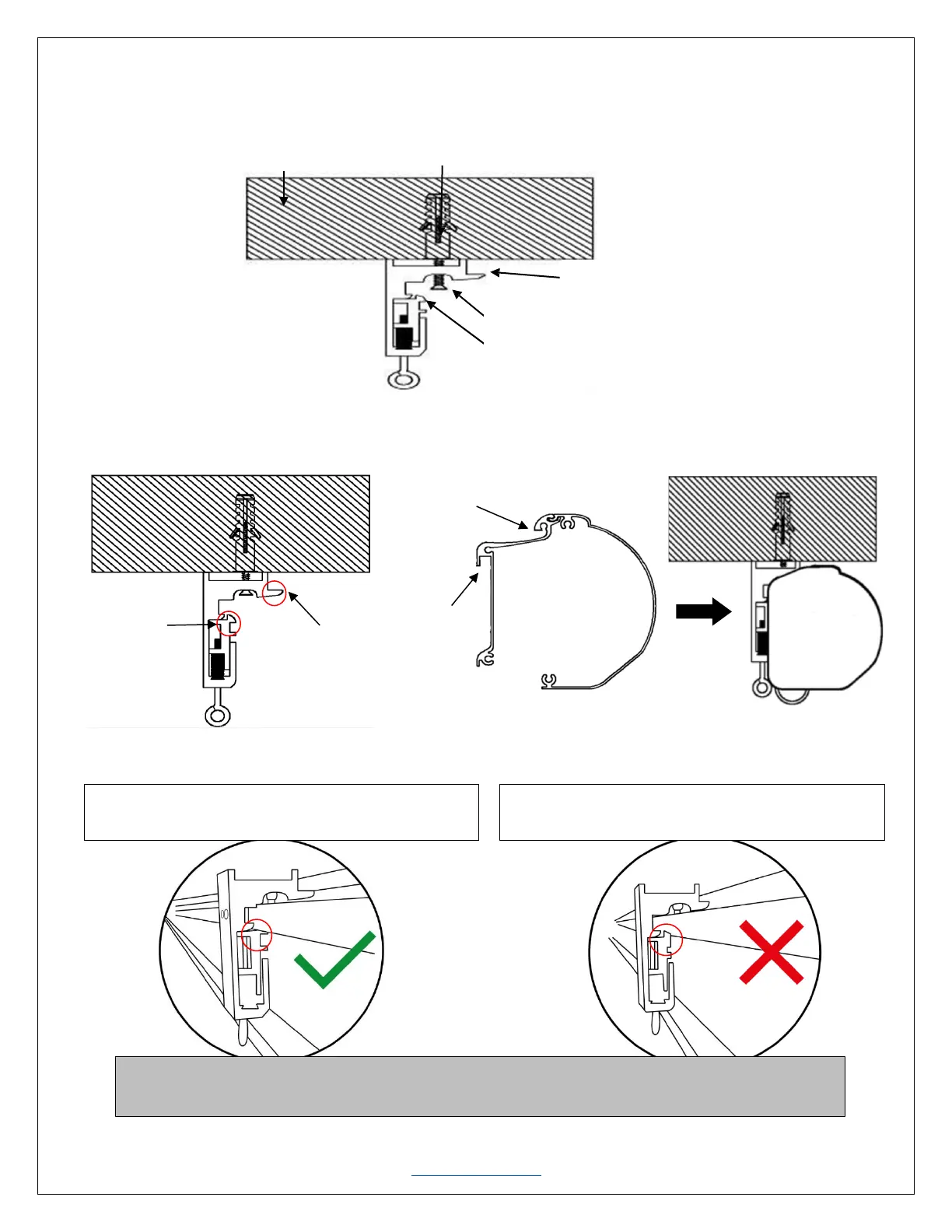

1. Mark the location of where the screen is to be installed, drill your holes, and insert the M10 Anchors (c).
2. Install the Mounting Brackets (a) to the ceiling and secure with the M4x50 Screws (b).
3. Insert and attach the Top Case Slot A to the Top Clamp Slot 1, then secure it by pushing and clicking it in
the Bottom Case Slot B to the Bottom Clamp Slot 2. Make sure the case slots are securely attached to the
mounting brackets.
IMPORTANT: PROPERLY ATTACH THE BRACKET TO THE SCREEN CASE
M4x50 screw
Ceiling
M10 Anchor
Mounting Bracket Top Clamp Slot 1
Mounting Bracket Bottom Clamp Slot 2
Top Case Slot A
Bottom Case
Slot B
Bottom Clamp
Slot 2
Top Clamp
Slot 1
CORRECT: BOTH TOP/BOTTOM MOUNTING BRACKET
SLOTS ARE SECURELY LATCHED IN SCREEN CASE.
CAUTION: THE WALL BRACKET MUST BE SECURELY LATCHED IN THE CASE SLOTS TO
PREVENT THE CASE FROM FALLING OFF.
INCORRECT: BOTTOM MOUNTING BRACKET CLAMP
SLOT IS NOT SECURELY LATCHED IN SCREEN CASE.
