Elite Screens Starling Tab-Tension 2 Series User Manual

Rev.V02182023DT (DS8598) 6 www.elitescreens.com
How to change the RF code (For use when multiple screens/RF remotes are owned)
Changing the RF code avoids controlling multiple screens at the same time and prevents electrical interference
leading to accidental control of the screen.
1. Remove the batteries
2. Change the RF code switch
3. Insert the batteries
4. Synchronize it with the wall box controller

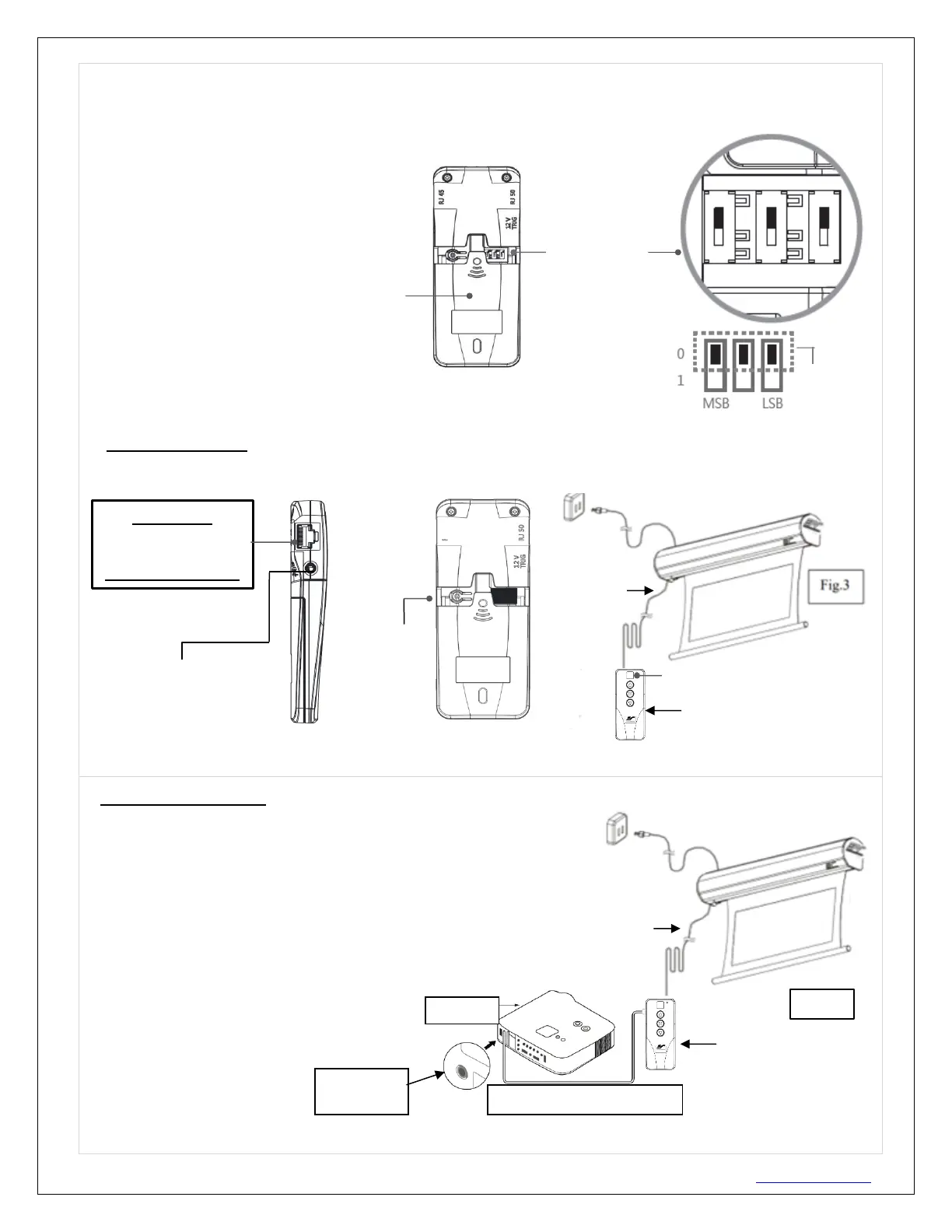

3. Wall box controller (Item C, Fig 3): The wall box controller switch is a wall mounted control box with an
up/stop/down button. It plugs directly into the screen’s RJ50 port.
4.Wired 5-12 volt trigger: Requires a 3.5mm to 3.5mm mono cable (not included)
Step 1: Connect one end the RJ50 cable to the screen and the other end
to the Wall box controller.
Step 2: Then connect one end the 3.5mm mono cable to the wall box
controller and the other to the projector.
Once the two cables have been connected, the wired trigger feature
is ready to synchronize the screen’s up/down operation with the
projector’s power cycle.
• Projector on, screen drops
• Projector off, screen raises
Wall box controller
IR Receiver
RJ50 cable
Wall box controller
SIDE VIEW
RJ50 PORT:
Connects to the
Screen RJ50 PORT
(RJ50 CABLE ONLY)
3.5mm mono Projector
Trigger Port (if Projector
equipped)
3.5 mm port
DC 5-12V out
3.5mm to 3.5mm mono cable
Wall box controller
Fig. 4
RJ50 cable
Projector
Wall box controller
BACK VIEW
Programming
Key
Battery compartment
Default
“000”
RF Remote
BACK VIEW
Slide Switches
for RF Code
change

Elite Screens Starling Tab-Tension 2 Series Specifications

General

Format	HDTV
Diagonal	100 \
Drive type	Motorized
Screen gain	1.1
Native aspect ratio	16:9
Viewable screen width (W)	2214.9 mm
Viewable screen height (H)	1244.6 mm
Overall screen size (Height x Width)	190.75 x 239.01 cm
Case color	Black
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	2067.6 mm
Case L1	2639.1 mm
