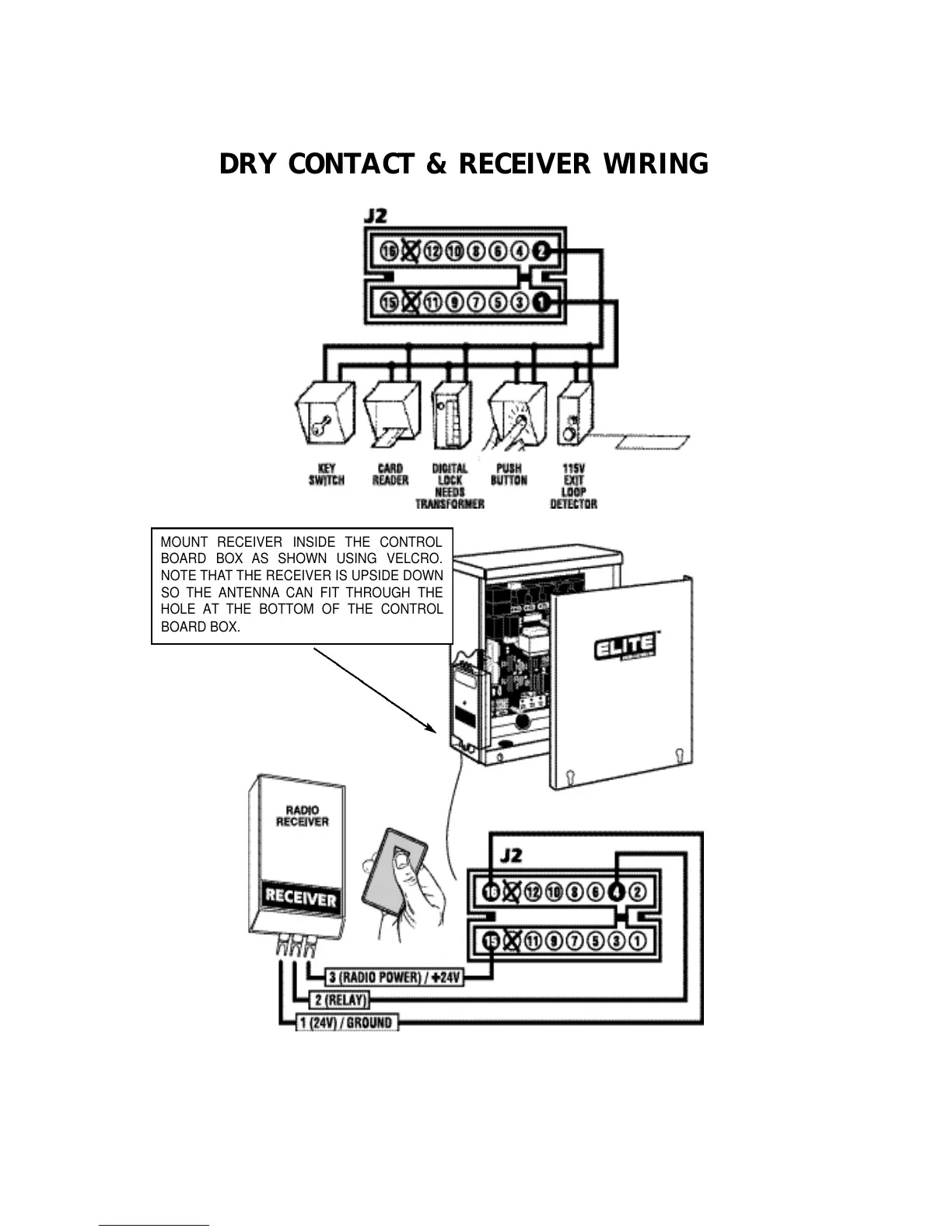

DRY CONTACT & RECEIVER WIRING
M O U N T RECEIVER INSIDE THE CONTROL
BOARD BOX AS SHOWN USING VELCRO.
NOTE THAT THE RECEIVER IS UPSIDE DOWN
SO THE ANTENNA CAN FIT THROUGH THE
HOLE AT THE BOTTOM OF THE CONTROL
BOARD BOX.
