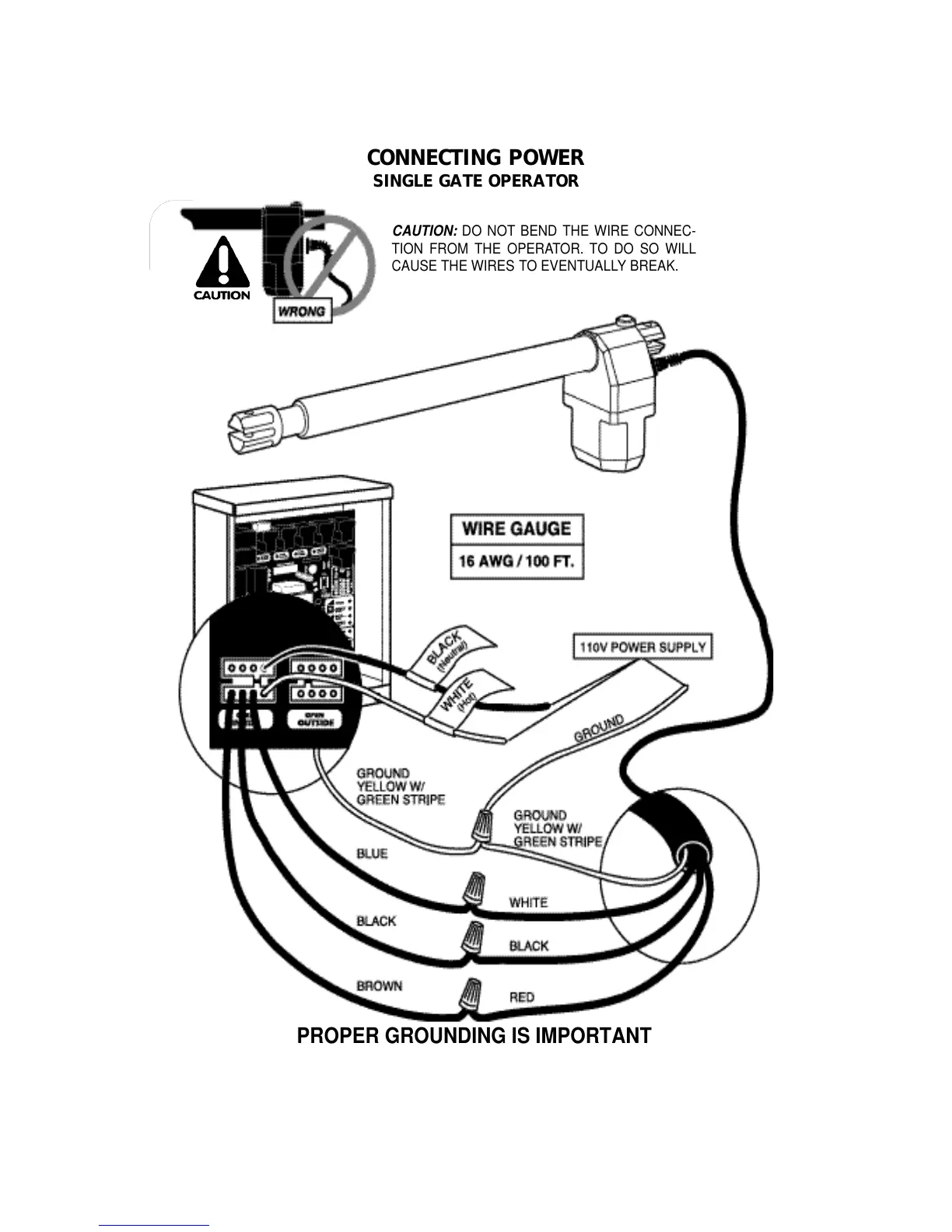

CONNECTING POWER
SINGLE GATE OPERATOR
CAUTION: DO NOT BEND THE WIRE CONNEC-
TION FROM THE OPERATOR. TO DO SO WILL
CAUSE THE WIRES TO EVENTUALLY BREAK.
PROPER GROUNDING IS IMPORTANT
