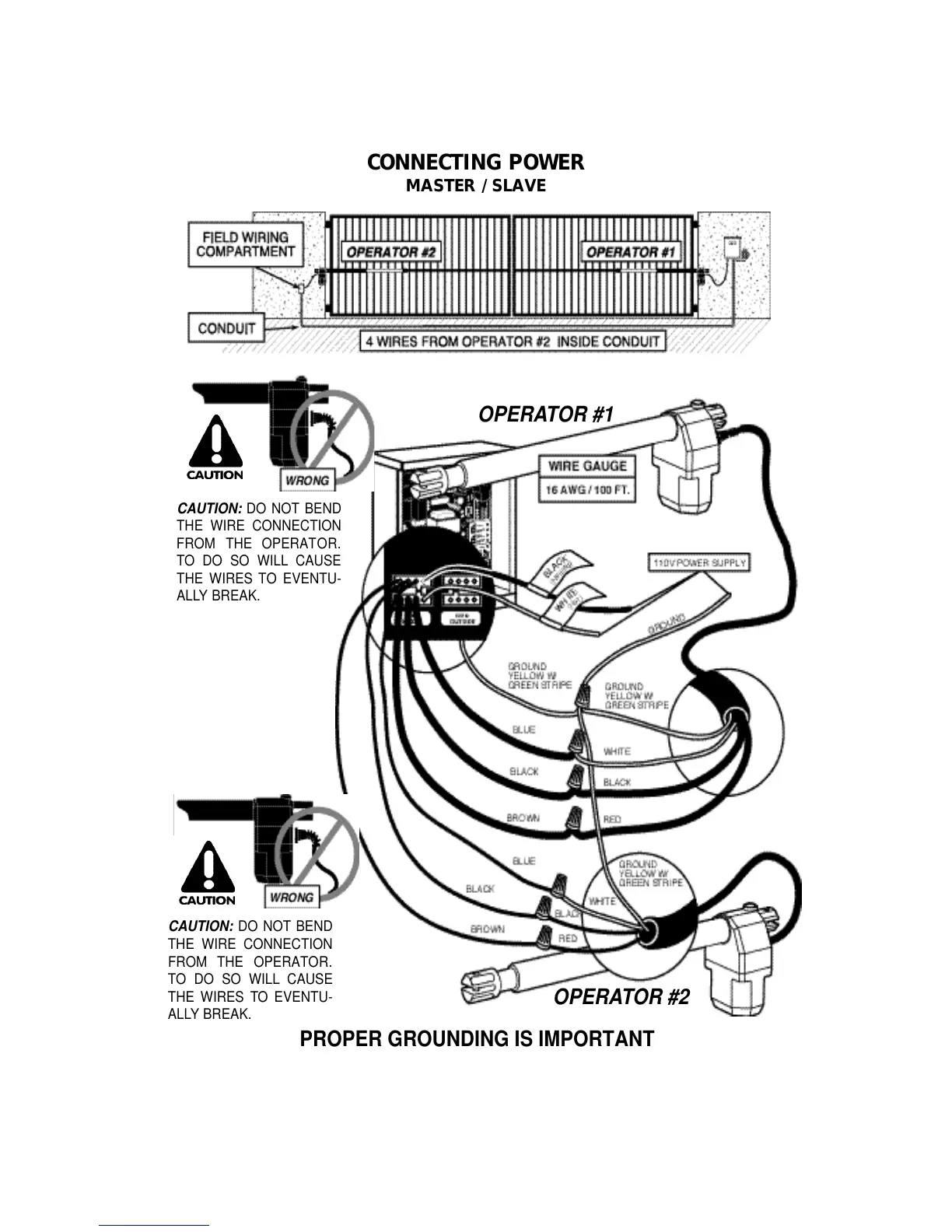

CONNECTING POWER
MASTER / SLAVE
OPERATOR #1
OPERATOR #2
CAUTION: DO NOT BEND
THE WIRE CONNECTION
FROM THE OPERATO R .
TO DO SO WILL CAUSE
THE WIRES TO EVENTU-
ALLY BREAK.
CAUTION: DO NOT BEND
THE WIRE CONNECTION
FROM THE OPERATO R .
TO DO SO WILL CAUSE
THE WIRES TO EVENTU-
ALLY BREAK.
PROPER GROUNDING IS IMPORTANT
