Elite ACTUATOR-1 - Movement Direction and Sensor Adjustment; Choosing Gate Movement Direction; Current Sensor Adjustment Procedure

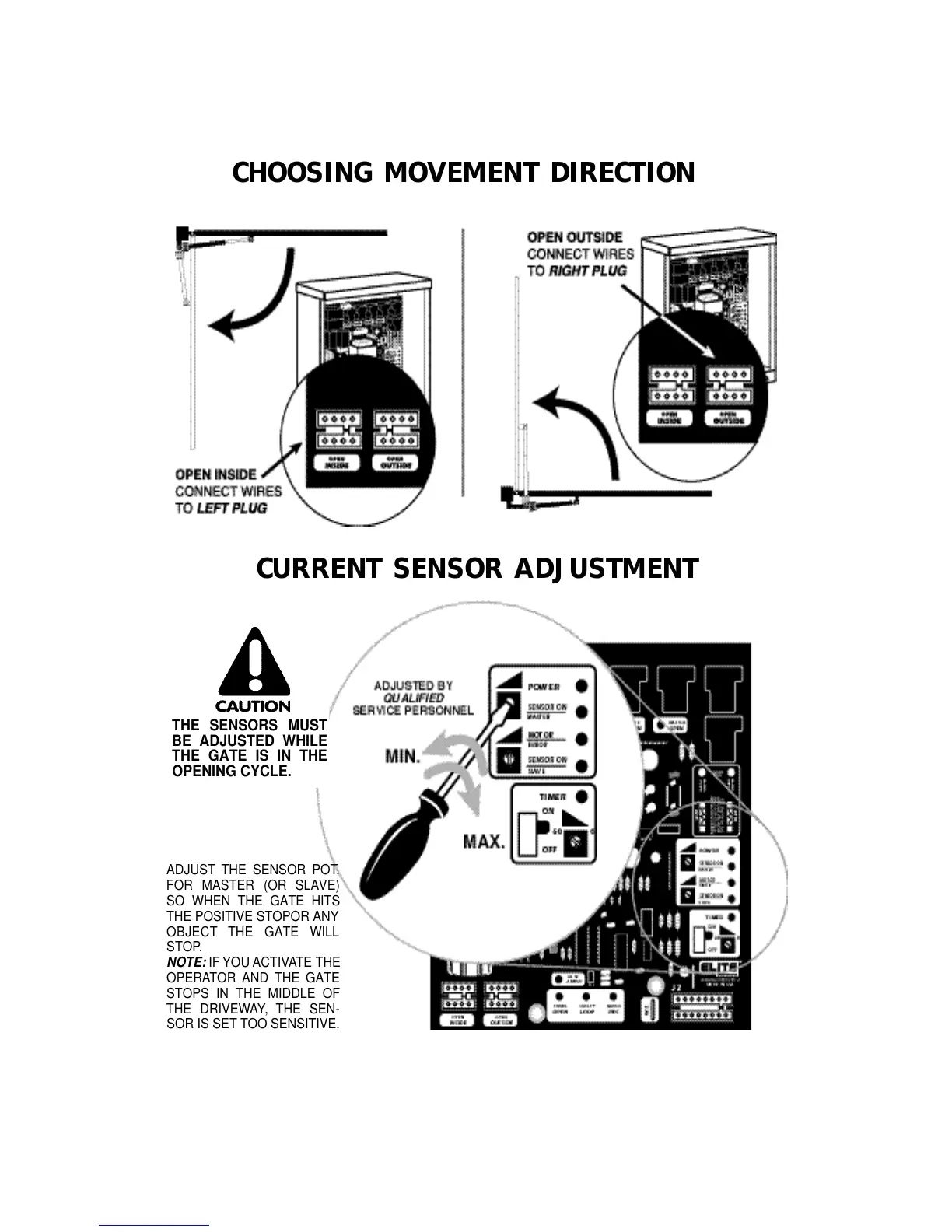

CHOOSING MOVEMENT DIRECTION
CURRENT SENSOR ADJUSTMENT
ADJUST THE SENSOR POT.
FOR MASTER (OR SLAV E )
SO WHEN THE GATE HITS
THE POSITIVE STOPOR ANY
O B J E C T THE GATE WILL
STOP.
NOTE: IF YOU ACTIVATE THE
OPERATOR AND THE GATE
STOPS IN THE MIDDLE OF
THE DRIVEWAY, THE SEN-
SOR IS SET TOO SENSITIVE.
THE SENSORS MUST
BE ADJUSTED WHILE
THE GATE IS IN THE
OPENING CYCLE.
