Elite ACTUATOR-1 - Preparation for Outside Gate Opening; Gate Post Reinforcement and Mounting Plate Details; Outside Gate Spacing and Dimension Measurement Plans

OPEN TO THE OUTSIDE

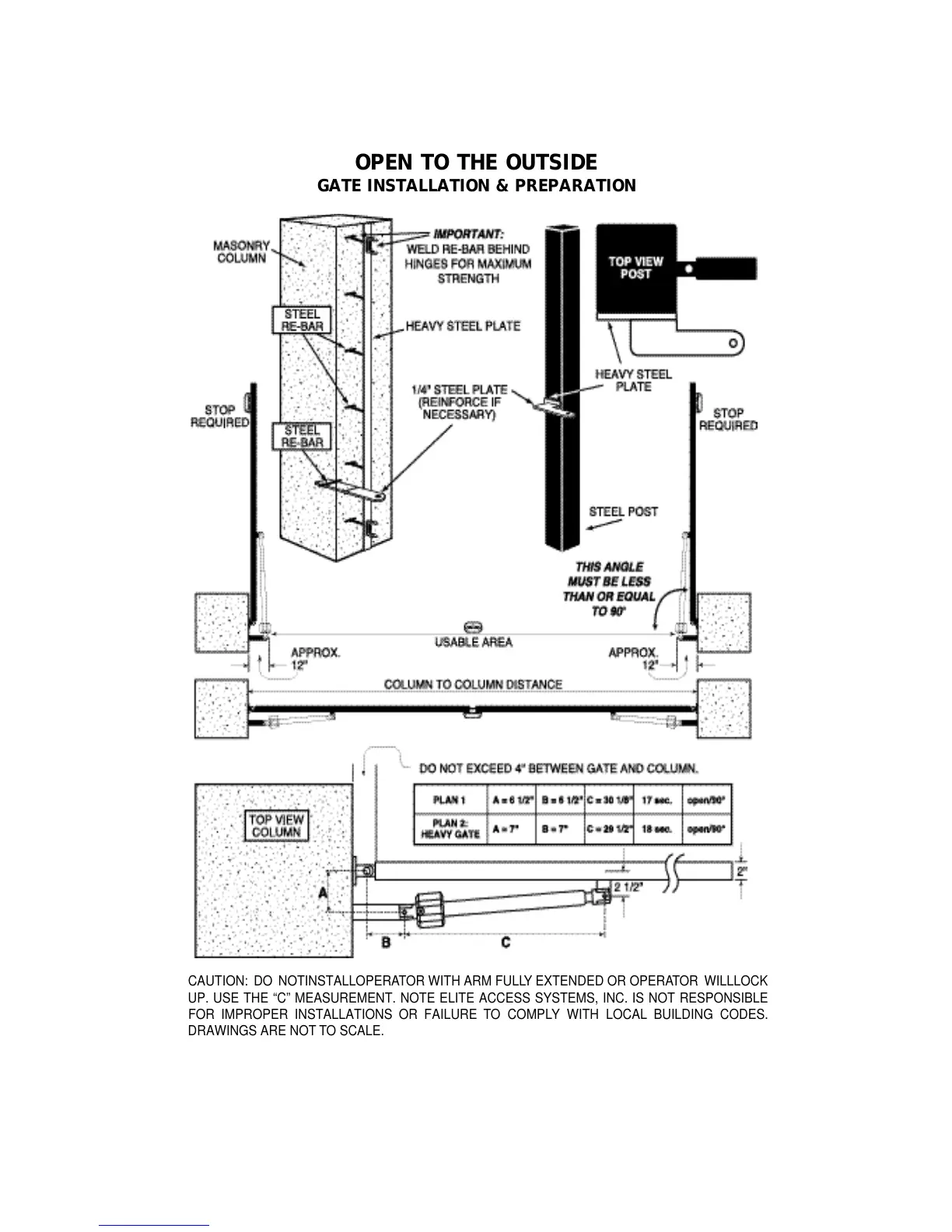

GATE INSTALLATION & PREPARATION
CAUTION: DO NOTINSTALLOPERATOR WITH ARM FULLY EXTENDED OR OPERATOR WILLLOCK
UP. USE THE “C” MEASUREMENT. NOTE ELITE ACCESS SYSTEMS, INC. IS NOT RESPONSIBLE
FOR IMPROPER INSTALLATIONS OR FAILURE TO COMPLY WITH LOCAL BUILDING CODES.
DRAWINGS ARE NOT TO SCALE.
