Elitech RC-5 - Record Capacity and Time;Date Display; Min;Max Temperature and Limit Displays

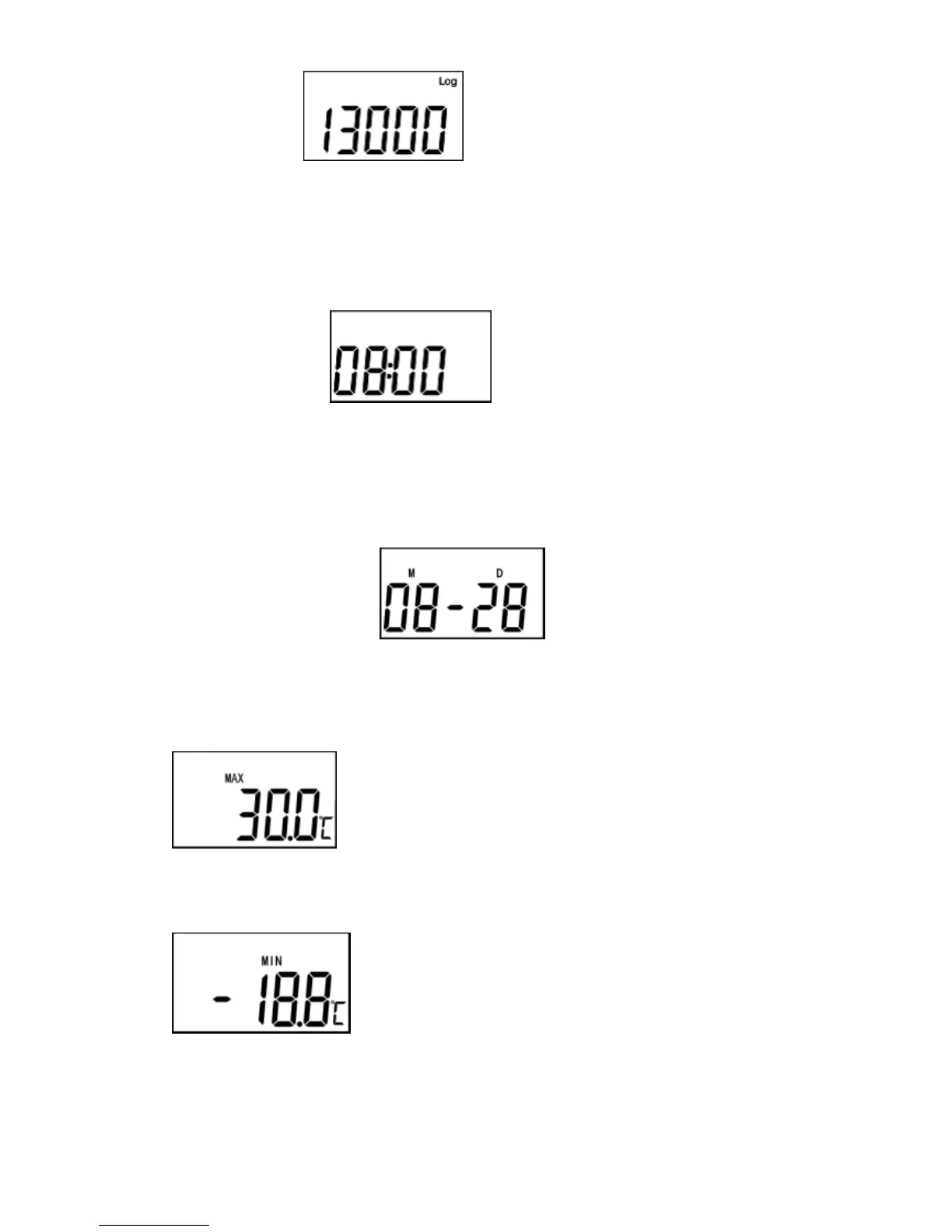

(Figure 2)
Time display interface:
In time display interface, it displays the hour and minute of the data logger. The time
format is 24 hours. The display interface is as shown in Figure 3:
(
((
(Figure 3
Figure 3Figure 3
Figure 3)
))
)
Date display interface:
In date display interface, it displays the month and date of the data logger, display
interface is shown as Figure 4:
(Figure 4)
Note: The data below the symbol “M” indicates month, and the data below the
symbol “D” indicates date.
Max.temperature display: The maximum temperature valued measured since the
beginning of recording, its display interface is shown as Figure 5:
(Figure 5)
(Figure 5)(Figure 5)
(Figure 5)
Min.temperature display：
：：
：The minimum temperature measured since the beginning
of recording, display interface is shown as Figure 6：
(Figure 6)
(Figure 6)(Figure 6)
(Figure 6)
Temperature upper limit display interface shown as Figure 7：
：：
：
