Eliwell EZ-HT - Mounting and Electrical Safety; Panel Mounting and Dimensions; Electrical Hazards and Precautions

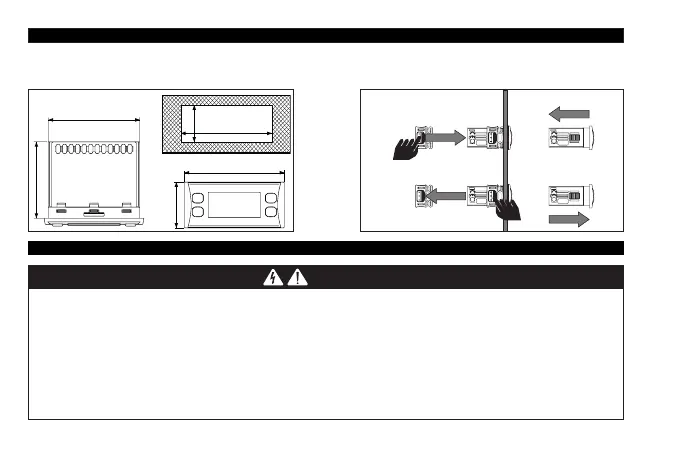

MOUNTING - DIMENSIONS
The device is designed for panel mounting. Drill a 71x29 mm (2.80x1.14 in.) hole and insert the instrument; secure it with the special brackets
provided. Do not install the device in places subject to high humidity and/or dirt; it is intended for use in sites with ordinary class of pollution.
Keep the area around the instrument cooling slots adequately ventilated.
29 mm
76.4 mm - 3.01 in.
35 mm - 1.38 in.
1.14 in.
71 mm - 2.80 in.
70 mm - 2.75 in.
59 mm - 2.32 in.
ELECTRICAL CONNECTIONS
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
• Disconnect all power from all equipment including connected devices, prior to removing any covers or doors, or installing or
removing any accessories, hardware, cables, or wires.
• Always use a properly rated voltage sensing device to confirm the power is off where and when indicated.
• Replace and secure all covers, accessories, hardware, cables and wires.
• Check the earthing connections on all earthed devices.
• Use only the specified voltage when operating this device and any associated products.
Failure to follow these instructions will result in death or serious injury.
