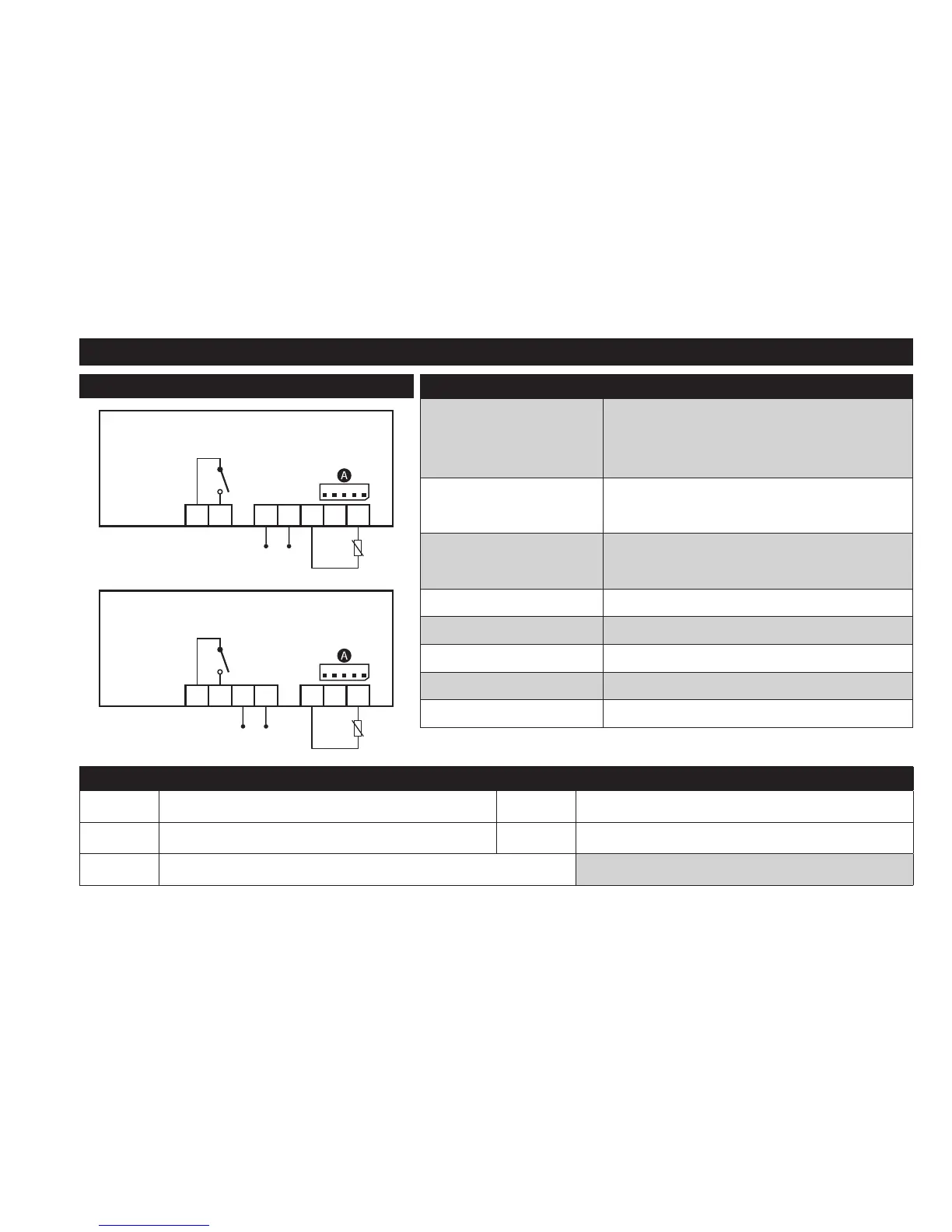

NTC/PTC MODEL (with 2HP relay)
CONNECTIONS
INPUT/OUTPUT CHARACTERISTICS
Display range:
NTC: -50...110°C (-58...230°F)
PTC: -50...140°C (-58...302°F)
on display with 3½ digits + sign
Analogue input
1 NTC or 1 PTC
(selectable by parameter H00)
Serial
TTL for connection to Copy Card or
Televis/Modbus remote control systems
Digital outputs
OUT1: 1 SPST relay 16(8)A 2Hp 250 Va
Buzzer output only on models where this is provided
Measurement range -50 ... 140°C (-58 ... 284°F)
Accuracy better than 0.5% of end of scale +1 digit
Resolution 0.1°C (0.1°F up to +199.9°F; 1°F over)
NTC/PTC - 12V (2 Hp)
Supply
Pb1
OUT1
4 5 7 8 9 10 11
NTC/PTC - 230V (2 Hp)
Supply
Pb1
OUT1
4 5 76 9 10 11
TERMINALS
4-5 N.O. regulator relay OUT1 *6-7
Power supply 24V
a
, 115V
a
and 230V
a
.
9-11 Probe Pb1 Input *7-8
Power supply 12V
a/c
and 12-24V
a/
12-36V
c
.
A TTL input for Copy Card and TelevisSystem connection * depends on model
