Ellard DC2 User Manual

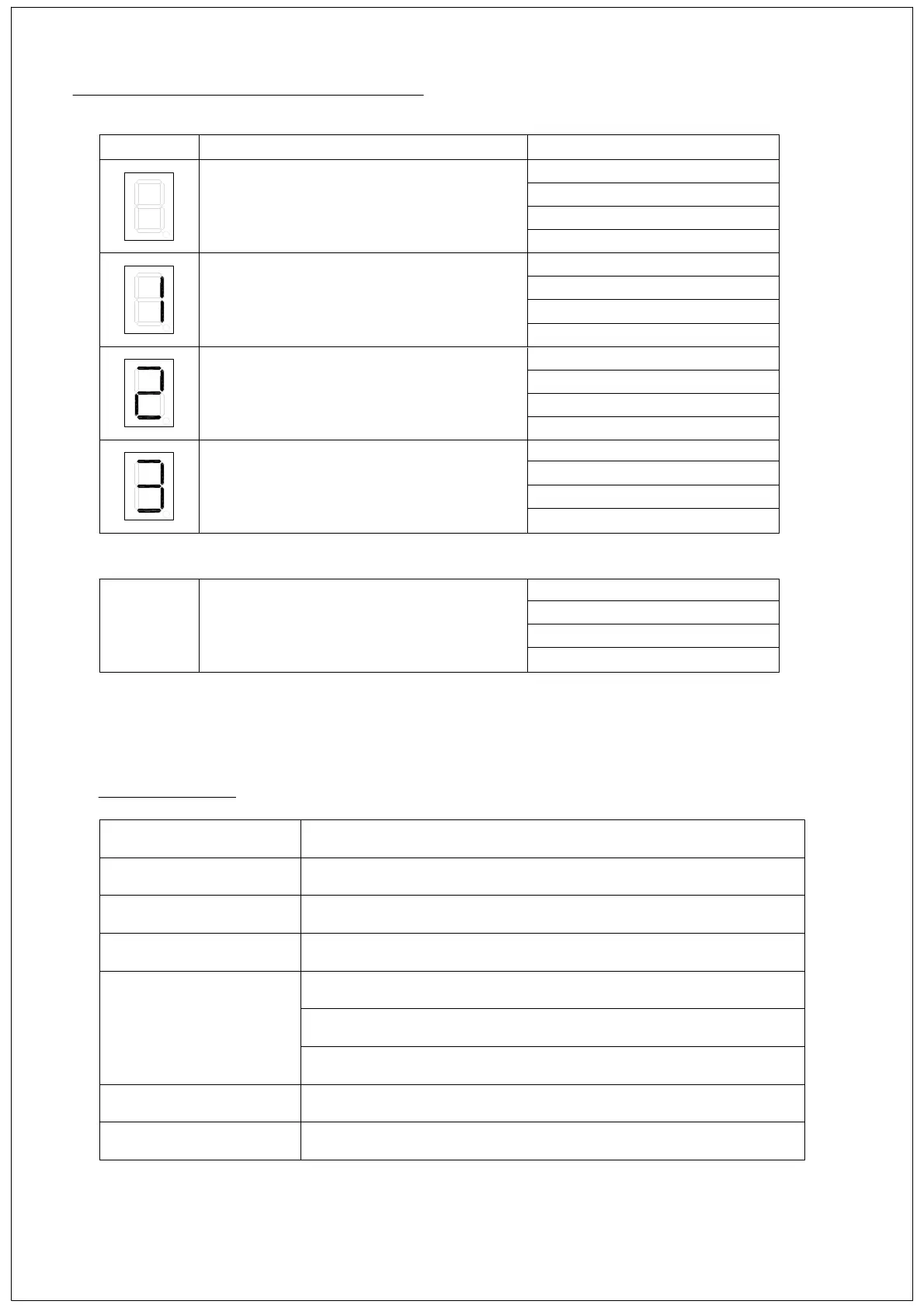

Trouble shooting - Common Faults
Display
Blank -No Power
Fault Check
Mains Fuse
PCB Fuse
Mains Power Supply
Factory Fitted Link
Release E-Stop Button
Emergency Stop Activated
Wiring or Loose Connections
Safety Edge Activated
DIP Switch Position
Repalce sensors
Factory Fitted Resistor
Wiring or Loose Connections
Photocell Activated
or open circuit
DIP Switch Position
Repalce photocell
Photocell alignment
11
Technical data
Model DC 2 - EURO delux
Supply Voltagel
Frequency
Protection class
Outputs motor
230VAC
50Hz
IP54
3x NO relay contact 230V / 5A
2x NO relay contact 230V / 2A
1x unregulated supply voltage 24V DC max 50mA
Wiring size (max)
1.5mm² max
Operature temp
-10°C to +55°C
Wiring or Loose Connections
Radio Control opens door
but will not close
DIP Switch Position
Faulty Safety Edge
Photocell faulty or miss aligned
Other

Ellard DC2 Specifications

General

Brand	Ellard
Model	DC2
Category	Controller
Language	English
