3.5 Safety devices
Elmasteam steam jet cleaners have all prescribed safety devices
such as
• Safety relief valve
• Overtemperature protection
• Protection of the electrical contacts against spray water
• Contact protection at the ball valve
3.6 Product description
3.6.1 Elmasteam 4
5
basic

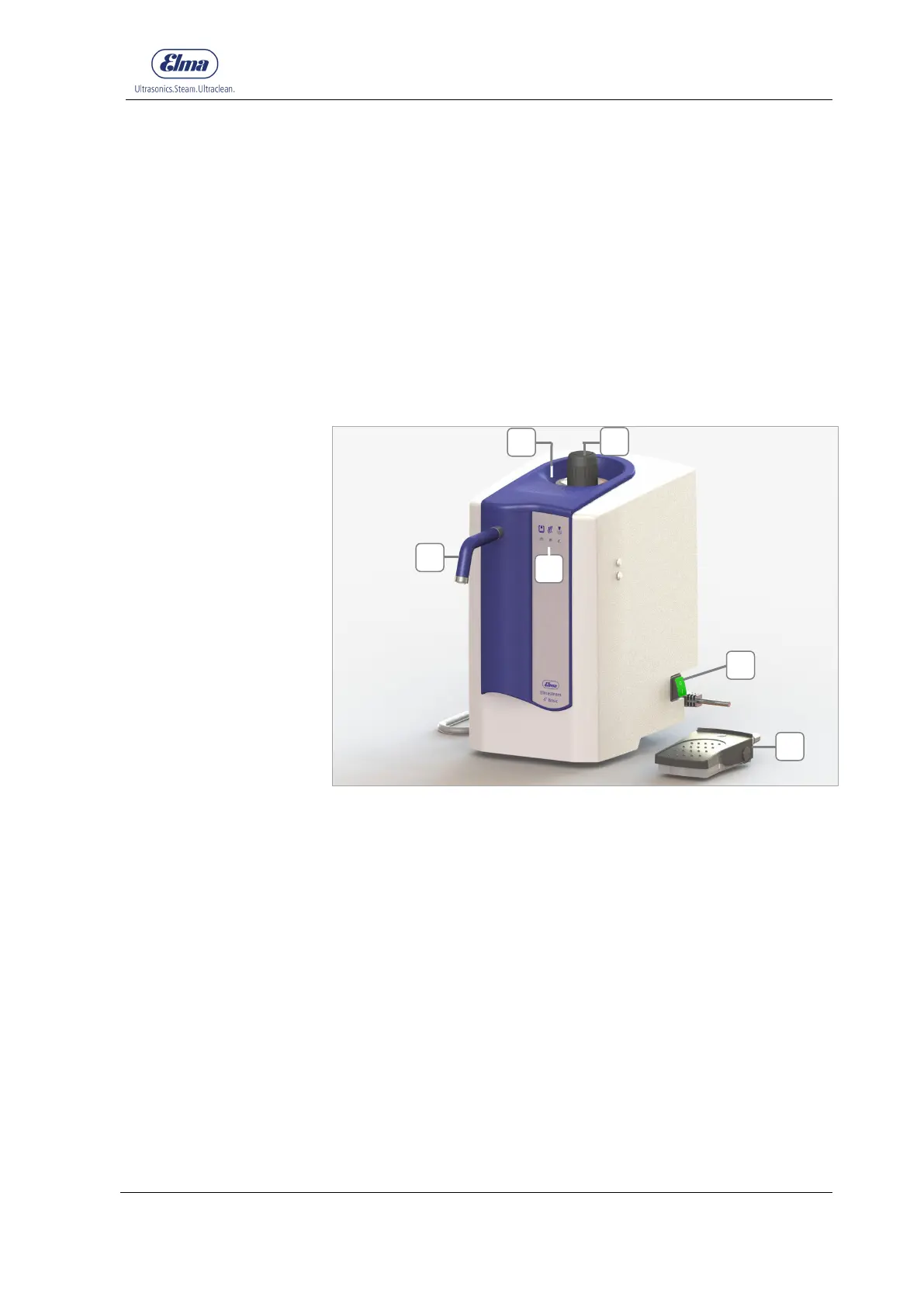

Fig. 3.6.1.1. Elmasteam 4
5
basic
Collecting basin for overflowing water
Pressure tank screw cap: filling opening for manual filling
Fixed nozzle
Operation indicators
Mains power switch (I) = ON / (0) = OFF
Reset after refilling and signalisation pressure tank empty (chapter
5.2)
Foot switch
A
B
C
D
E
F
B
D
C
E
A
F
