4.2 Fixed nozzle mounting (option)
Ensure that the Elmasteam is switched off and depressurised.
1. Remove the blanking plug by unscrewing the nut (Fig.
4.2.1.A).
2. Screw the fixed nozzle with the nut (Fig. 4.2.2.B) onto the
connection nozzle on the machine.
3. Tighten the nut with a ¼ turn using a 12 mm open-ended
spanner.
4. Slide the black protection sleeve in the direction of the arrow
over the nut (Fig. 4.2.3.).

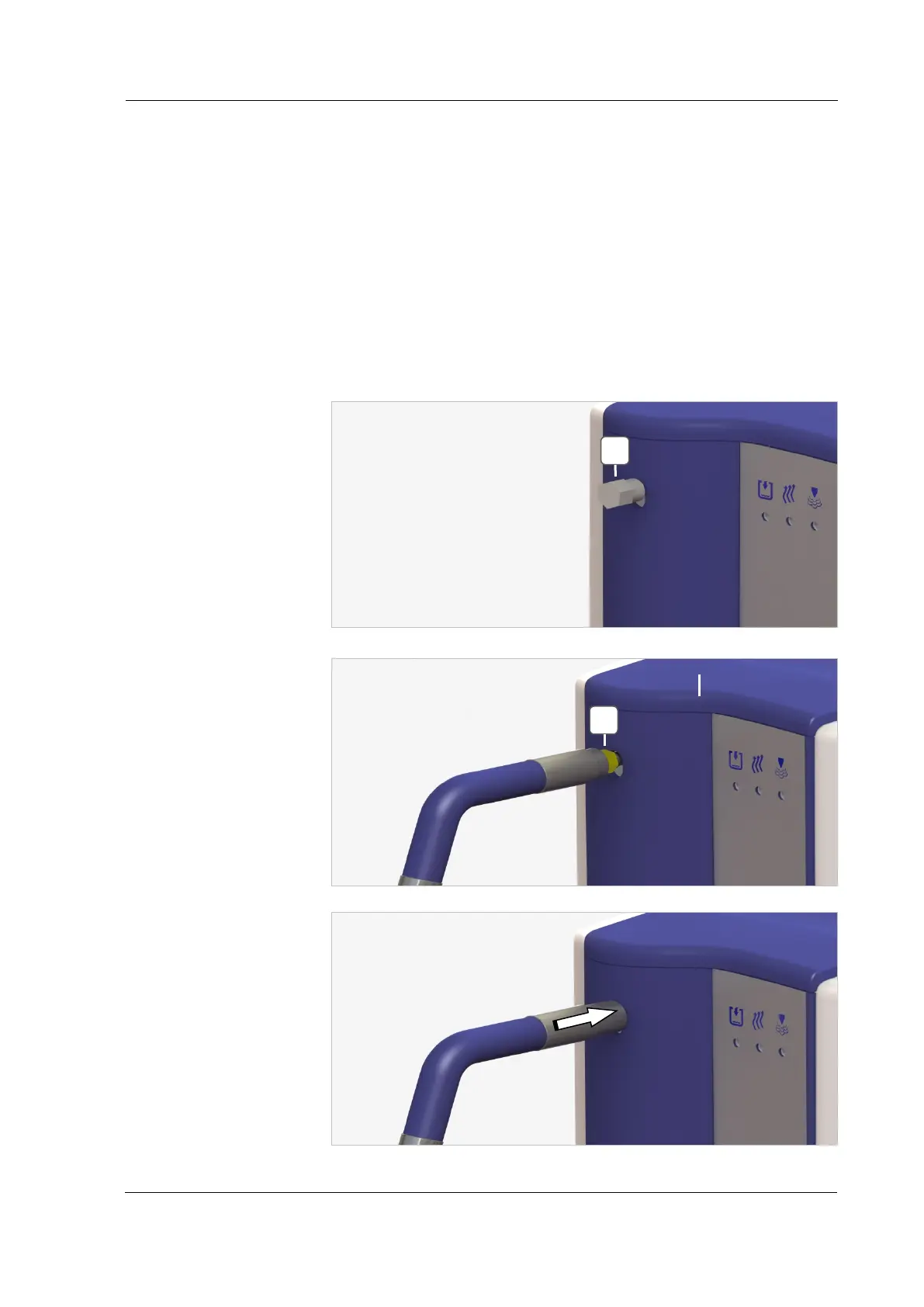

Fig. 4.2.1 Blanking plug in the delivery condition
Fig. 4.2.2 Screwing on hand piece
Fig. 4.2.3. Sliding protection sleeve over connection
Procedure
A
B
