Product description
12
BA_Elmasteam 4
5
_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

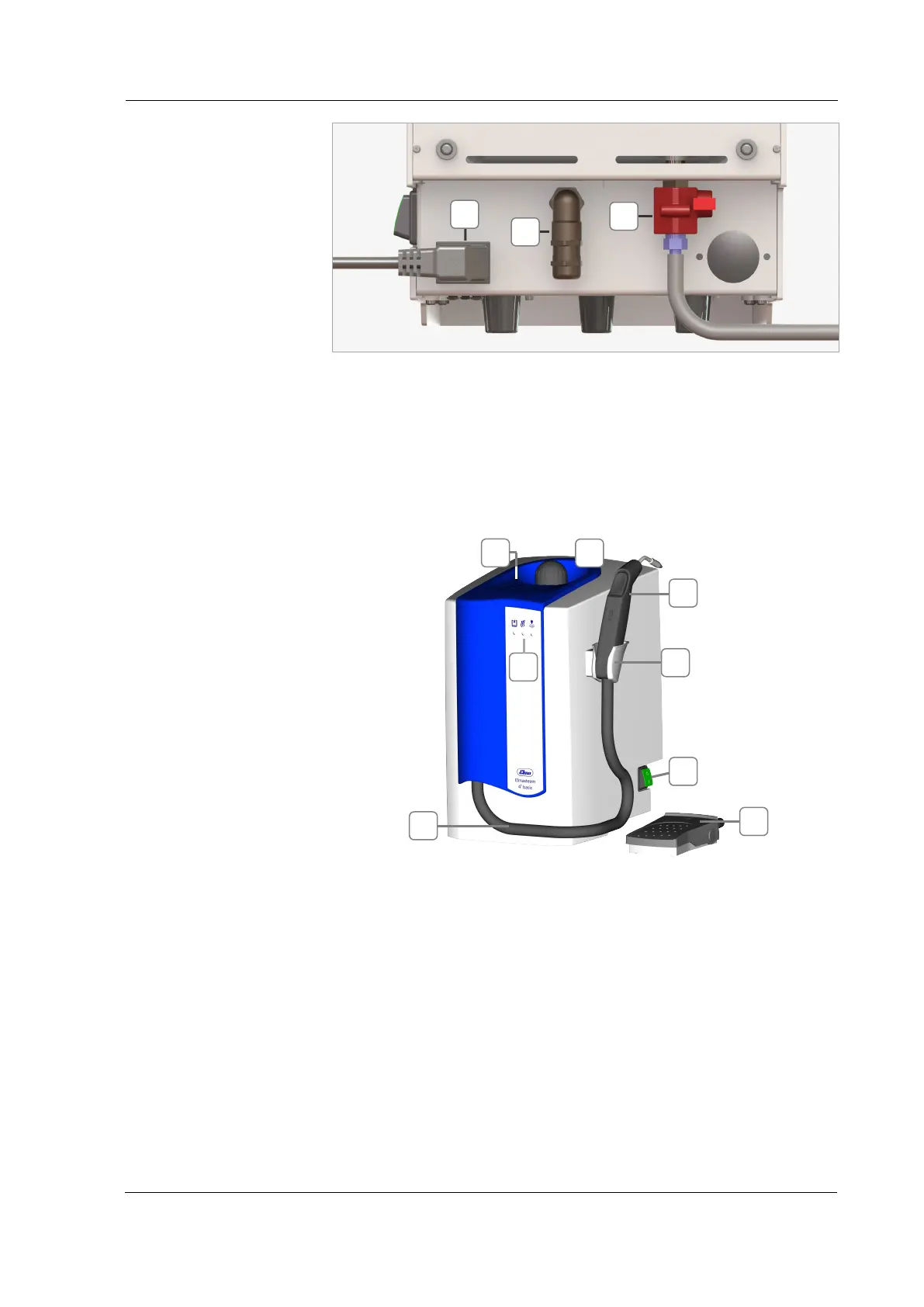

Fig. 3.6.1.2. Elmasteam 4
5
basic rear side
Device connector with mains cable
Foot switch connector
Ball valve with plastic contact protection and mounted service hose
(chapter 7.2).
3.6.2 Elmasteam 4
5
basic HP | basic P-HP
Fig. 3.6.2.1. Elmasteam 4
5
basic HP| basic P-HP
Collecting basin for overflowing water
Pressure tank screw cap: filling opening for manual filling
Flexible hand piece
Holder for hand piece
Operation indicators
Mains power switch (I) ON / (0) OFF
Reset after refilling and signalisation pressure tank empty
(chapter 5.2).
Foot switch
Steam hose
G
H
I
A
B
C
D
E
F
G
H
G
I
H
A
C
B
F
G
D
E
H
