SECTION I
Machine Parts

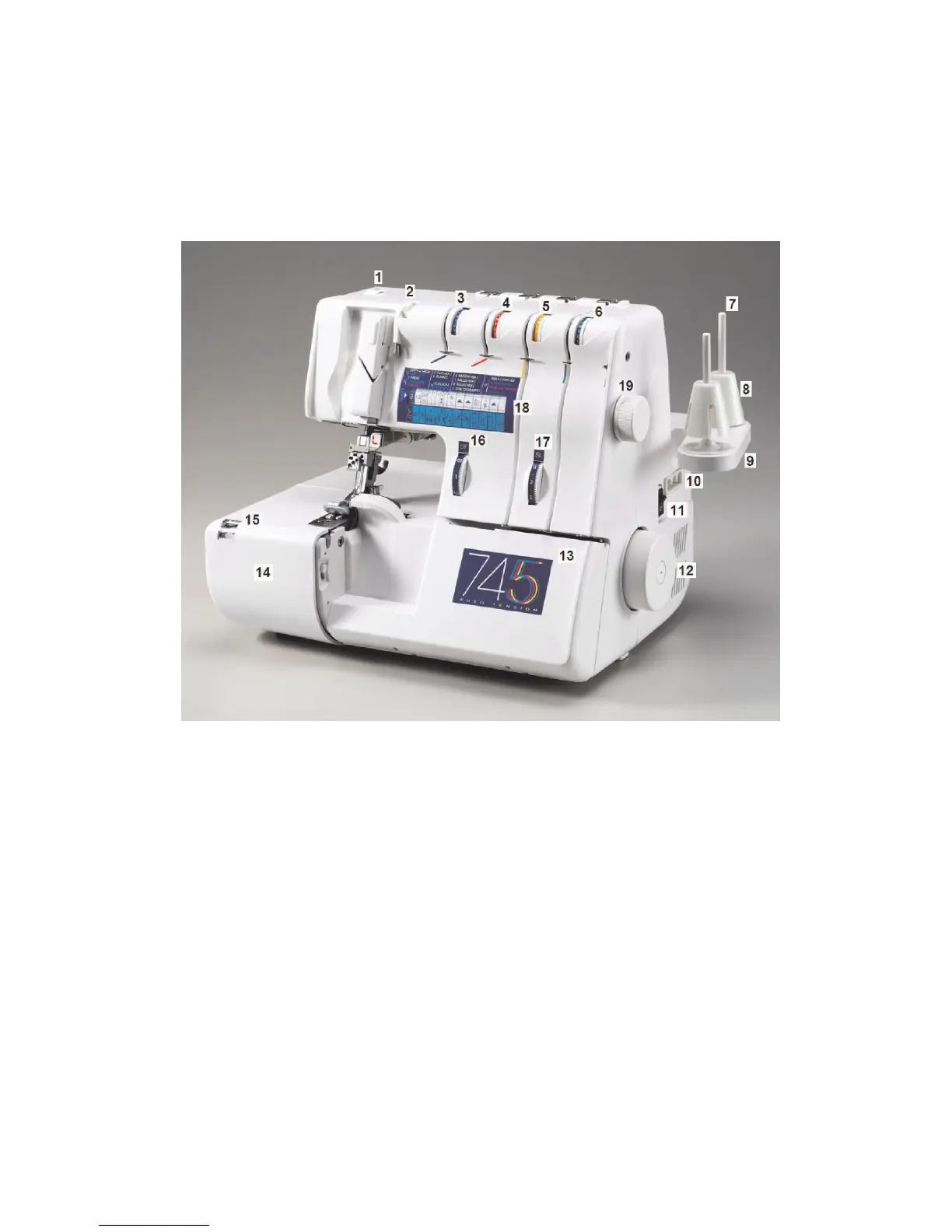

Front View
1. Pressure adjustment dial
2. Tension release lever
3. Left needle thread tension (blue)
4. Right needle thread tension (red)
5. Upper looper thread tension (yellow)
6. Lower looper thread tension (green)
7. Spool pin
8. Spool holder
9. Spool pin base
10. Foot control plug
11. Power switch On/Off
12. Flywheel
13. Front cover
14. Side cover
15. Cutting width window
16. Differential feed dial
17. Stitch length dial
18. Program display panel
19. Program selection dial
