Eltek Valere Minipack User Manual

Quick Start Guide Minipack PS System 356808.103, 1v2-2008-10
21

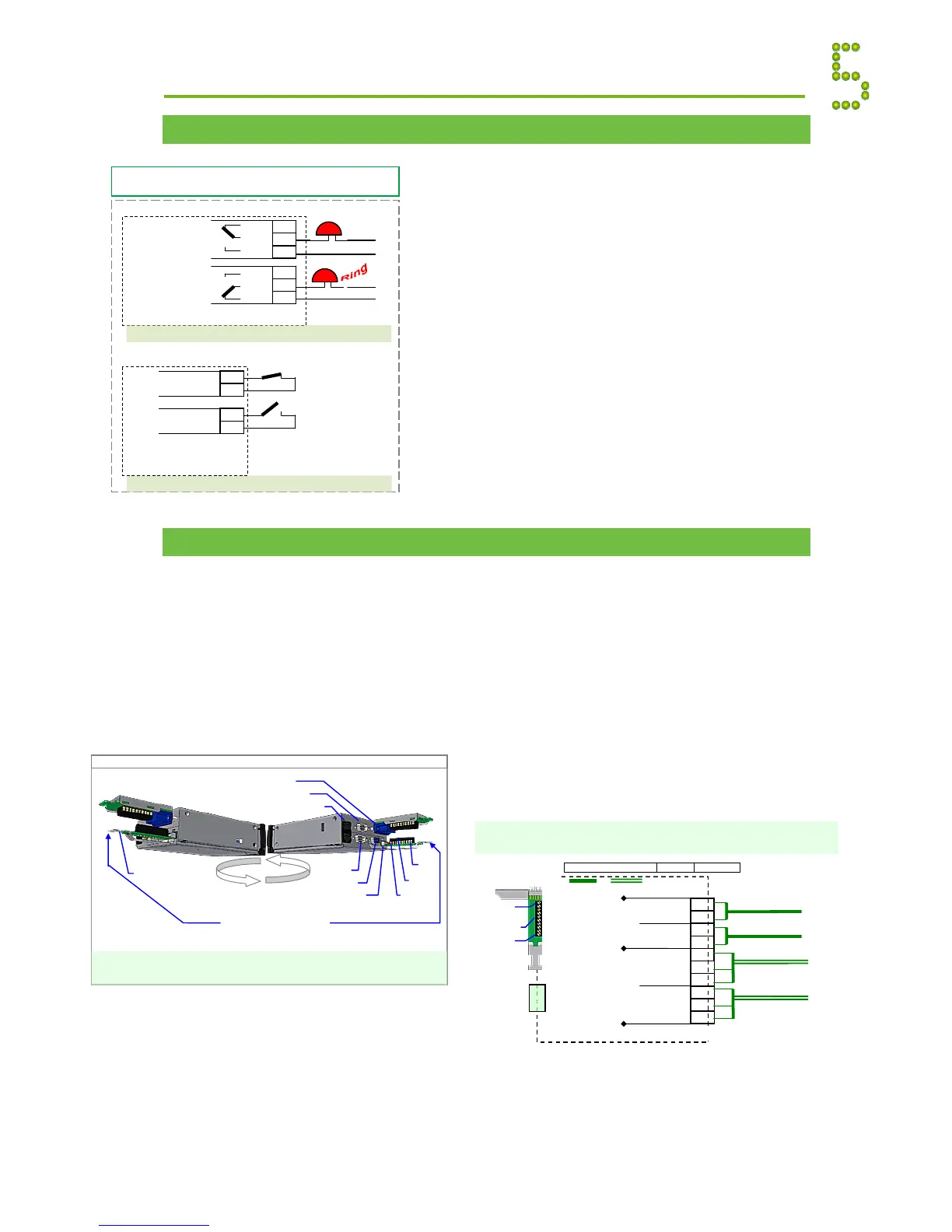

Standard Relays & Digital Inputs
Correct Use of Digital Inputs (example)
Normal Mode
External Relay Y
(Energized coil)
+
—
Digital Input
X
(Normal mode)
A
larm Mode
External Relay Y
(De-energized coil)
+
—
Digital Input
X
(Activated)
Minipack PS System
Correct Use of Alarm Outputs (example)
Minipack PS System
—
+
NC
NO
Com
Normal Mode
Relay
X
(Energized coil)
+
—
A
larm Mode
Relay
X
(De-energized coil)
NC
NO
Com
Standard Alarm Relays & Digital Inputs Connections
The alarm outputs in Minipack systems use the Fail-Safe
Operation Mode (relay coils energized in the system’s
normal operation mode). When the system is in alarm mode,
the alarm relay coils are de-energized.
The figure shows the position of the relay contacts when the
relay coils are de-energized (PS system in alarm mode)
In order to implement monitored fail-safe digital inputs
circuits, the external relay coil must be energized and the
contacts closed in the system’s normal mode of operation.
Alarm Interface Card ~ Terminals & Pin-out
The Smartpack controller’s alarm and digital input monitoring signals are accessible from the
controller’s rear panel, on mini power connector CON1 (2 outputs & 2 inputs).
Using the Alarm Interface Card (Art. 218470) plugged to Smartpack’s CON1, you can make the
signals on CON1 accessible on terminal block X1.
For detailed information about the card’s pin-out location and terminal block connections, see the
figures in this section.
A
larms & Monitorin
g
Appendix
Terminals & Pin-out Location
CON3
CAN1
Smartpack
CON2
CON4
CON5
CON1
10
1
X
1
Card neck for
cable fastening
Alarm Outputs & Digital Inputs Card
Art. 218470
Card 218470
4
3
2
1
5
9
8
7
6
10
X:1
(Customer Connections)
Input Circuit 1
Input Circuit 2
A
larm Circuit 1
A
larm Circuit 2
OutIn
(To and from
external equipment)
1.
5
mm
2
, max.
wire section
Relay 2
Mains Alarm
Relay 1
Common
A
larm
+
−
NO
COM
NC
NO
COM
NC
+
−
Digital Input 1
Digital Input 2
A
larm Outputs & Digital Inputs
Voltage free relay outputs and Configurable monitoring digital inputs
FUNCTION SIGNAL PIN-OUT
To Smartpack,
CON1
Card Art.218470
To CON1
1
10
X
1
The figure shows the position of the relay contacts when the PS
system is in alarm mode of operation; the relay coils are then de-
energized (fail-safe mode). The relay outputs are preprogrammed
from factory (Factory Settings).
