Static Transfer Switch
STS207
User Manual
Page 19 (28
)
ELTEK VALERE DEUTSCHLAND ©2009
UM_STS207_WEB_E_R1.4

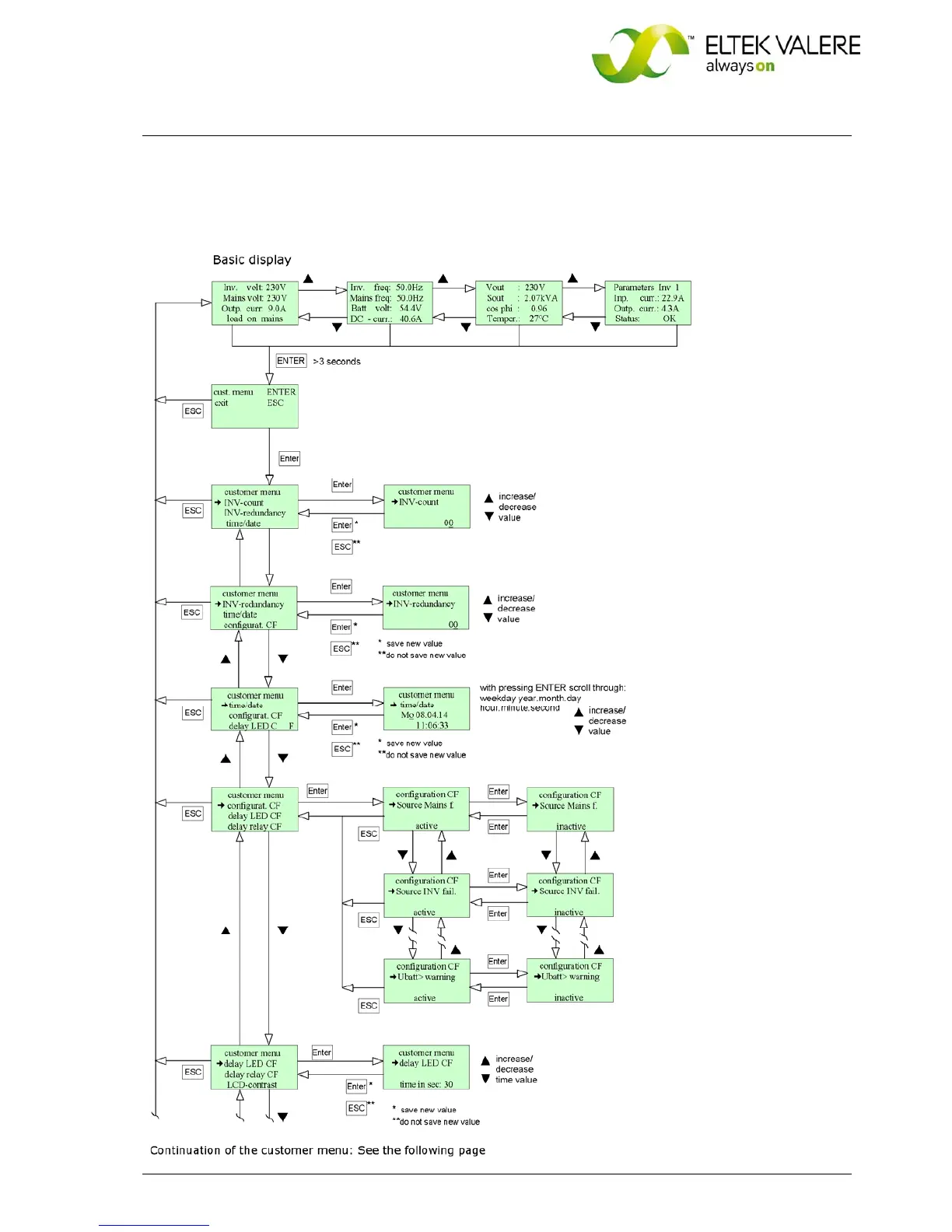

5.2 Structure of the customer menu
The customer menu can be entered from the Basic display by pressing “ENT” for approx. three seconds
and then press “ENT” again.
For a list of all
selectable individual
alarm messages for
the collective failure
(CF) signalization, see
section 5.1
Figure 10. Structure of
the customer menu
