16 BA-en-3018-2006_KNH18
3.8 Connecting the release signal
High voltage is enabled / disabled via an external 24 V signal.
Connect the lead of the release signal via the 5-pin connector (4, Fig. 1).
The pin assignment is shown in Fig. 6.
Cables prefabricated at one end are available for connection to this plug
(see accessories).
Note!
We recommend enabling / disabling the 24 V release signal via a machine
contact so that the high voltage is disabled when the machine is not run-
ning. This configuration will ensure that high voltage is not applied at the
bars with the machine stopped.

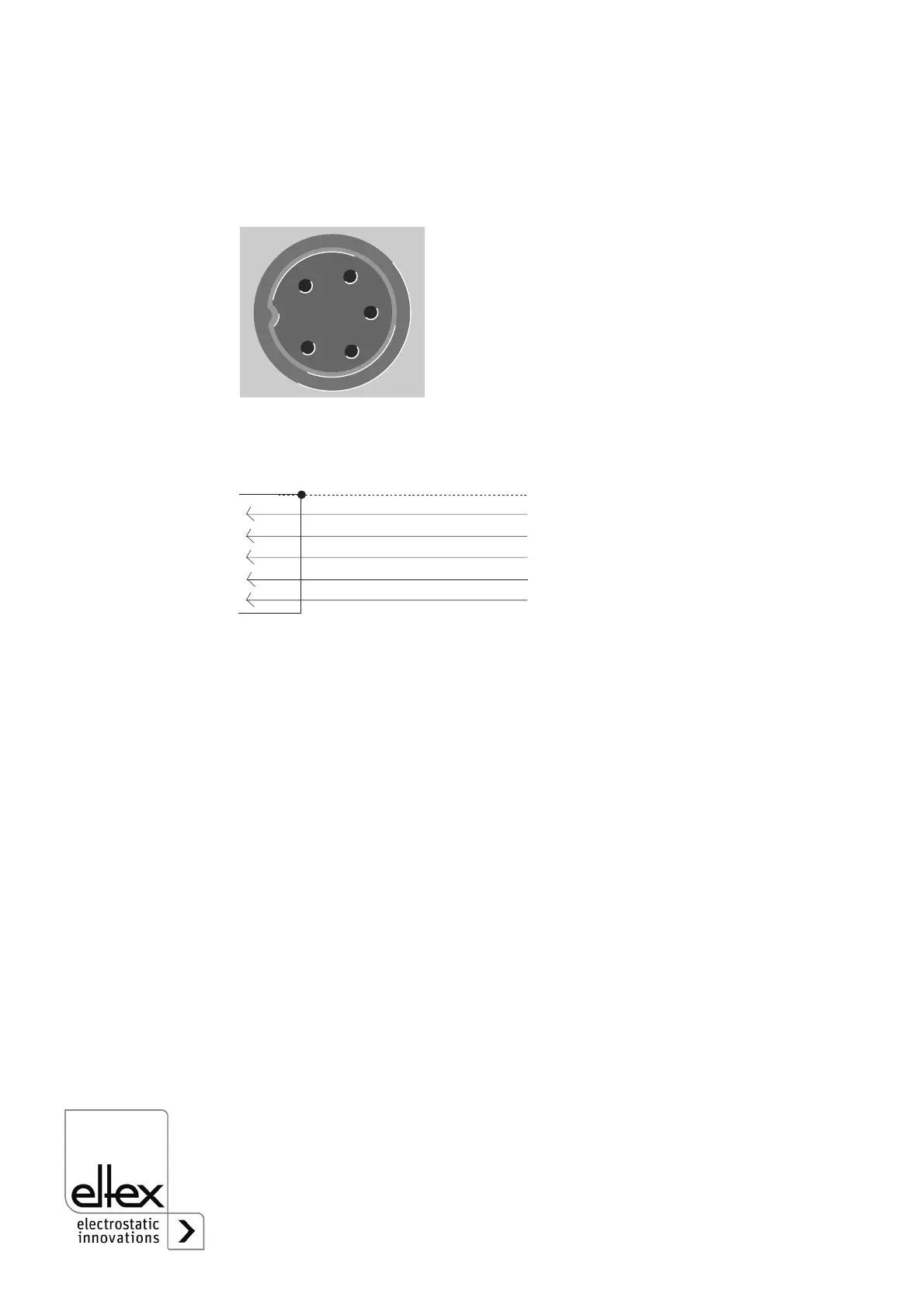

Fig. 6:
Pin assignment for
the 24 V release
signal
PIN 1: 24 V DC
PIN 2: -
PIN 3: -
PIN 4: -
PIN 5: 0 V
Z00185y
Fig. 7:
Connecting cable
KS/C for the
release signal
Wire colors:
1 = white
2 = brown
3 = green
4 = yellow
5 = grey
Z000010y
1
2
3
4
5
KS/C
Schirm/shield/ecran
