NTU-52V/VC. User manual (user)
3 Design
Subscriber terminal is designed as desktop device in plastic housing.

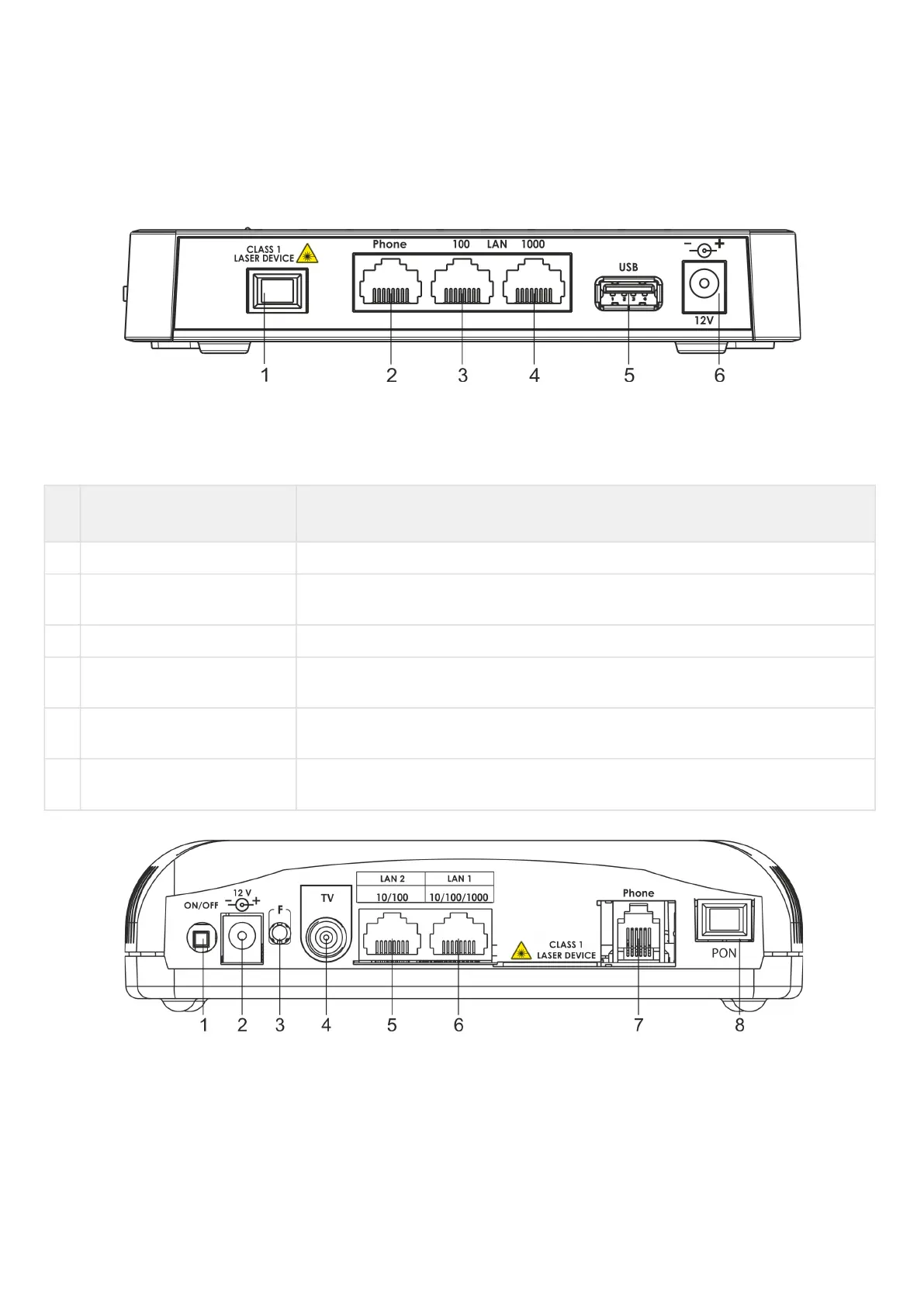

The rear panel layout of the devices is depicted in Fig. 2, 3.
Figure 2— NTU-52V rear panel layout
Connectors and controls located on the rear panel of 52V are listed in Table 3.
Table 3 – Description of the connectors and controls on the rear panel
# Rear panel element Description
1 PON SC port (socket) for PON with GPON interface
2 Phone RJ-45 connector for analogue phone connection
3 LAN 10/100 RJ-45 port for network devices connection (Ethernet/Fast Ethernet)
4 LAN 10/100/1000 RJ-45 port for network devices connection (Gigabit Ethernet)
5 USB Connector for external drives and other USB devices
6 12V Power adapter connector
Connectors and controls located on the rear panel of 52VC are listed in Table 4.
