Eltorque QT50 User Manual

Product Description
User Manual QT50 Doc ID 1321 version 2.0 Sept. 2018
Page 25 of 62
Function Value
Limiting continuous current 1A
Breaking capacity Max. 48 VA (1A)
Digital systems
For the digital interface, the digital outputs are passive, and the digital inputs are
active with a 5 V/20 mA rating. The digital output must be powered (see Table 8
for details).
Table 8: Relay outputs – digital interfaces
Function Value
Rated voltage 48V AC/VDC
Max. switching voltage 48V AC/VDC
Rated current 1A
Limiting continuous current 1A
Breaking capacity Max. 48 VA (1A)
Table 9: Cable requirements and recommendations digital and analog
systems
Cable parameter Required/ Recommended
Number of conductors 6 recommended twisted pair
Cross section 0.5 - 1.5 mm
2
/0.0197 – 0.0591 in
2
Shield
Not mandatory but is recommended in case the
actuator is placed in conjunction with equipment
emitting high levels of disturbances.
Installations with Eltorque Hybrid Marine Cable
Bus connection of actuators is undoubtedly the most cost-effective installation
methodology. Eltorque has developed a ground-breaking Hybrid CANbus / Power
cable especially designed for maritime applications.

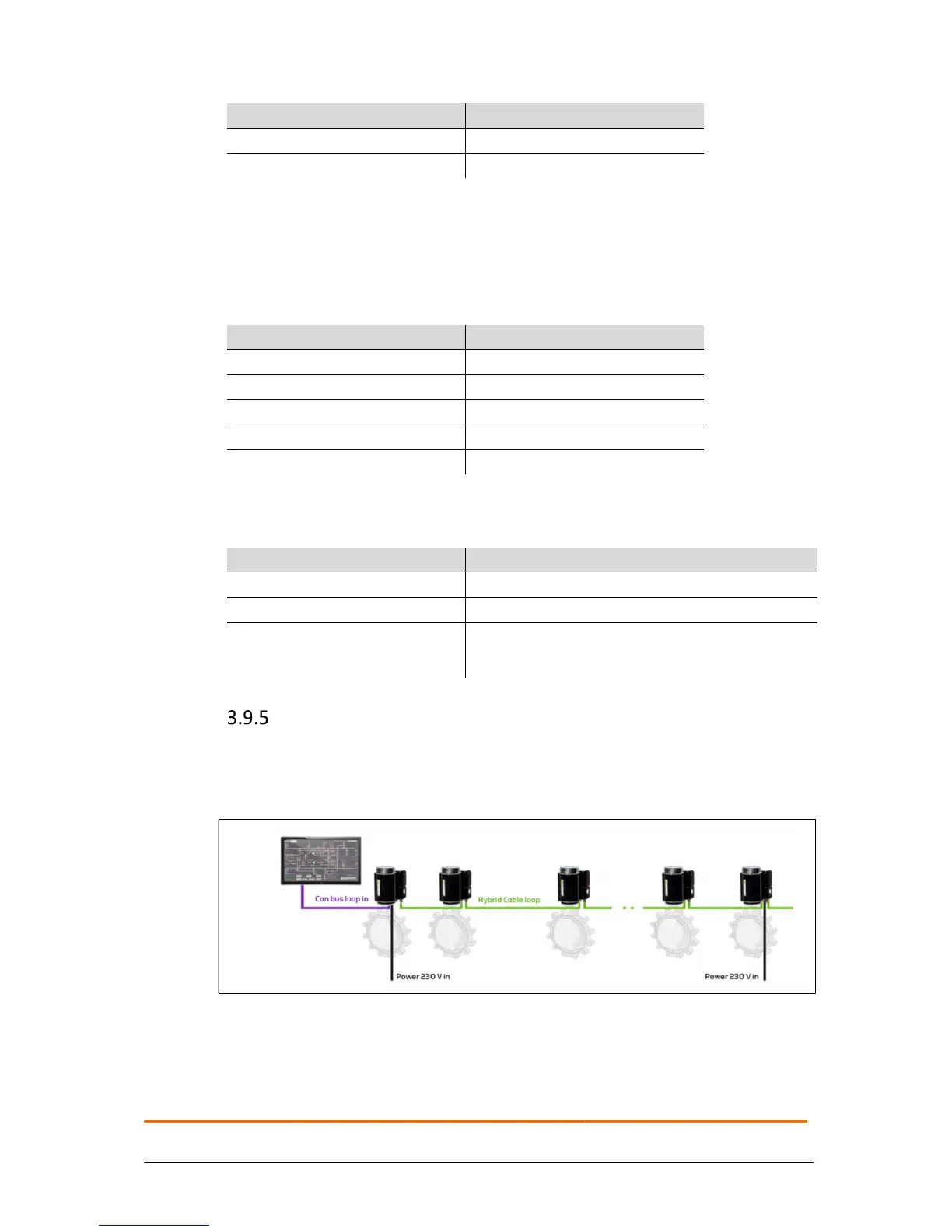

Figure 9: Bus connection of actuators
The Eltorque Hybrid Marine Cable combines signal and power cable in a hybrid
cable with maritime type approval. The cable can only be used for installations
