Space requirements
Actuator dimensions

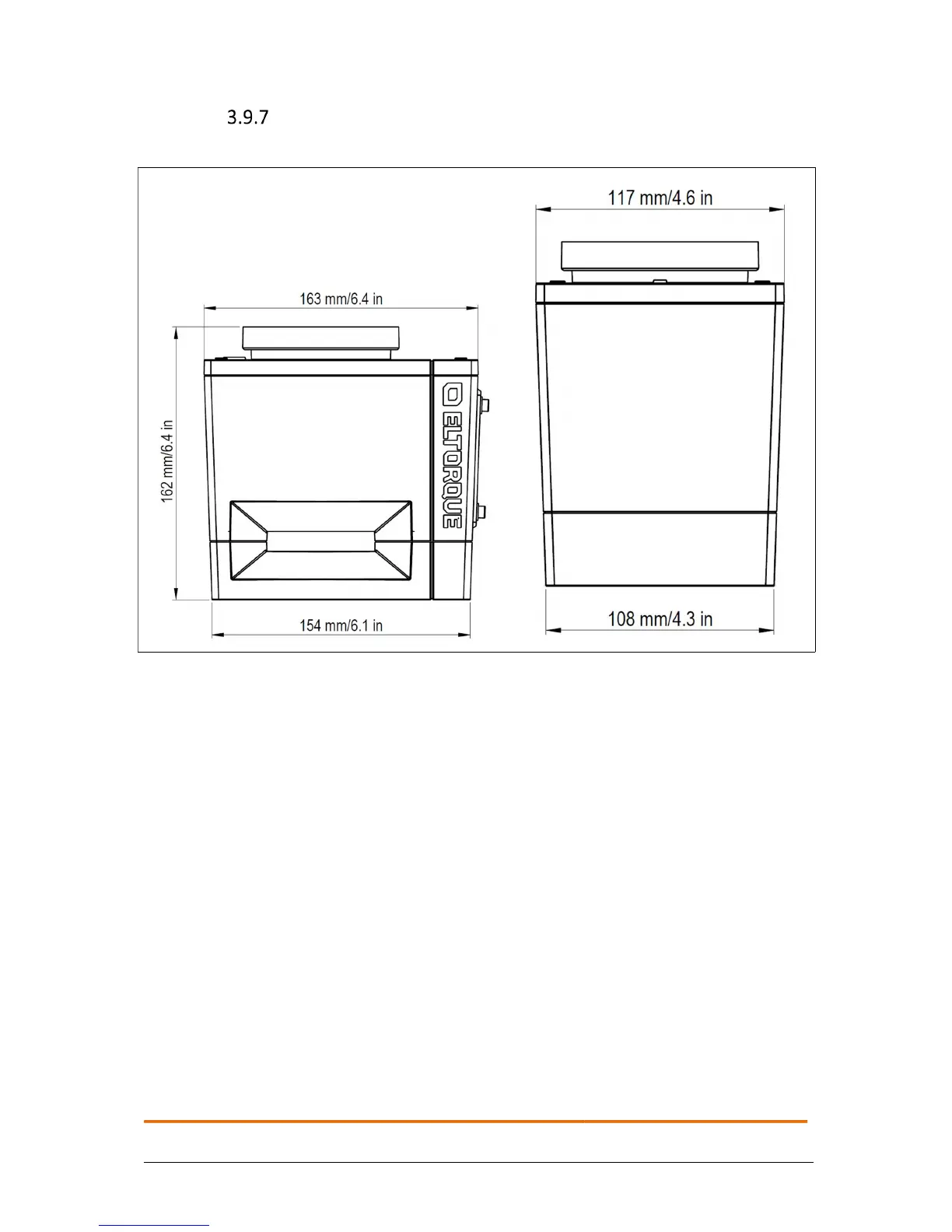

Figure 11: QT50 dimensions
Service space
During planning, please ensure sufficient space above and around the actuator
for installation, service and manual operation.
There must be a minimum of 150 mm / 5.90 in space above and 100 mm / 3.94
in to the sides of the actuator to accommodate room for installation, operation
and service. In front of actuator where you access the communication interface
connections, there should be at least 200 mm /7.87 in.
