The O-ring is visible:

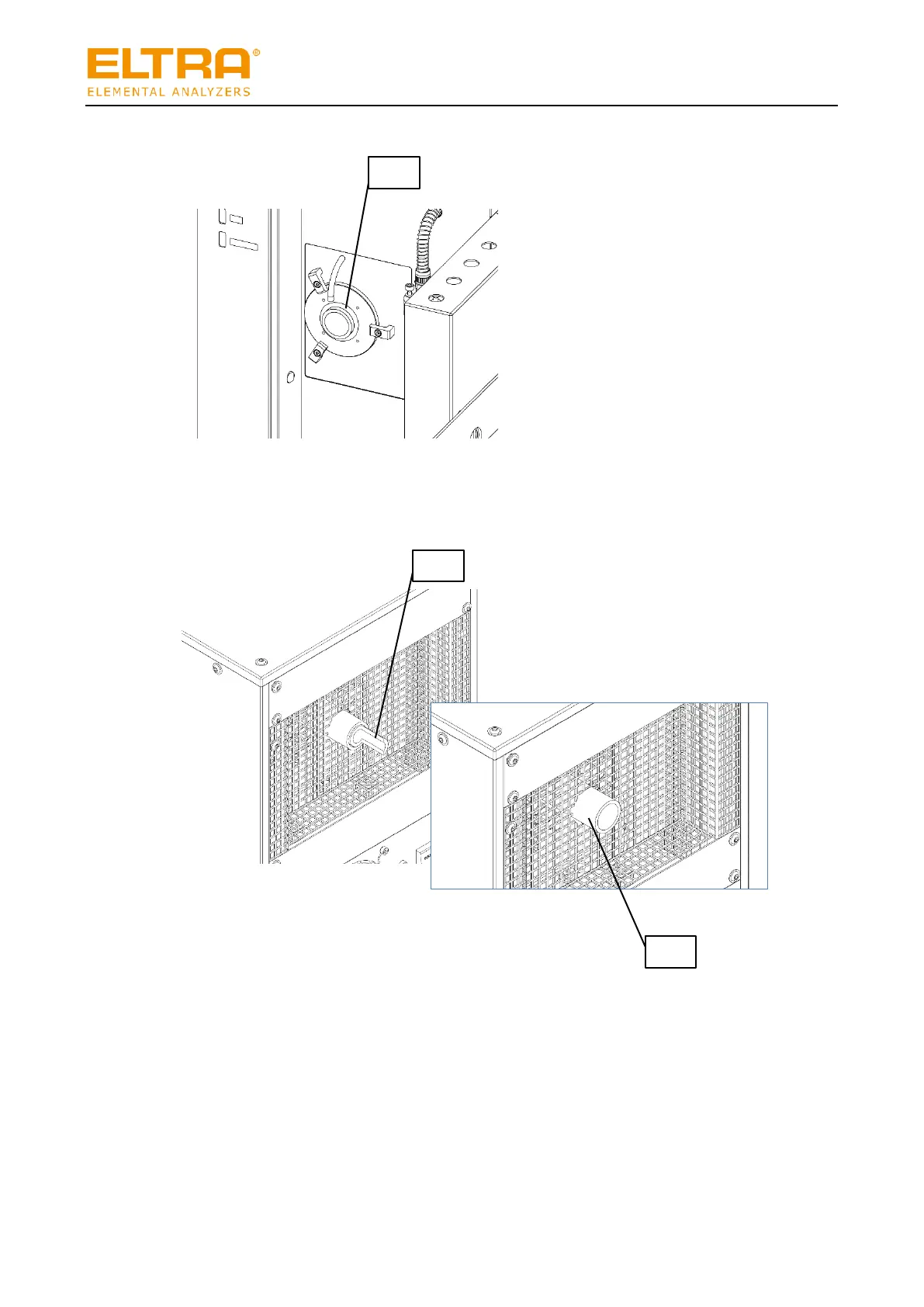

Fig. 34: O-ring behind the furnace locking device
6. Pull off the O-ring (7).
The mechanical stop on the dish and the combustion tube on the back:
Fig. 35: Removing the mechanical stop on the dish and combustion tube on the back
7. Pull the mechanical stop on the dish (8) at the back out of the machine from behind.
8. Carefully pull the combustion tube (9) out of the machine from behind.
Make sure that the combustion is not twisted.
The combustion tube has been removed.
7
9
8
