LO Command - Line Draw
Description This command is used to draw one line or
rectangle as a bit mapped graphic.
Syntax LOp
1,
p
1,
p
3,
p
4
Parameters p
1
= Horizontal start position (X) in dots.
p
2
= Vertical start position (Y) in dots.
p
3
= Horizontal width in dots.
p
4
= Vertical length in dots.
Example:
LO96,144,240,48↵: defines a line/rectangle shown
below.
54mm
432 dots
74mm
592 dots
x axis
y axis
Direction Of Feed
(0,0)
(431,591)
Point of
Origin for
Line/Box
Object

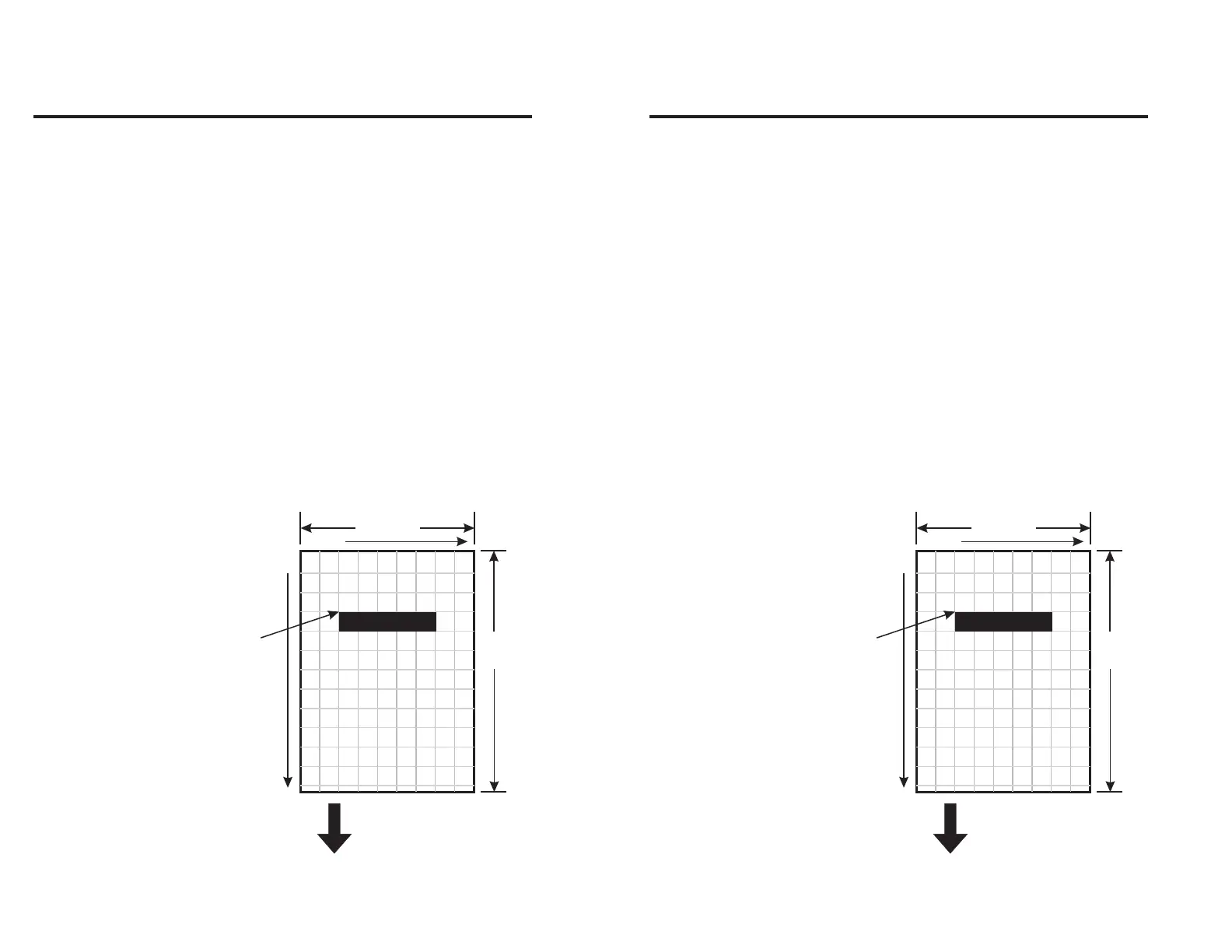

Figure 2-5
Orienting a Line
or Rectangle
32
980090-001 Rev. B
LO Command - Line Draw
Description This command is used to draw one line or
rectangle as a bit mapped graphic.
Syntax LOp
1,
p
1,
p
3,
p
4
Parameters p
1
= Horizontal start position (X) in dots.
p
2
= Vertical start position (Y) in dots.
p
3
= Horizontal width in dots.
p
4
= Vertical length in dots.
Example:
LO96,144,240,48↵: defines a line/rectangle shown
below.
54mm
432 dots
74mm
592 dots
x axis
y axis
Direction Of Feed
(0,0)
(431,591)
Point of
Origin for
Line/Box
Object
Figure 2-5
Orienting a Line
or Rectangle
32
980090-001 Rev. B
