Installation and configuration
Page 23

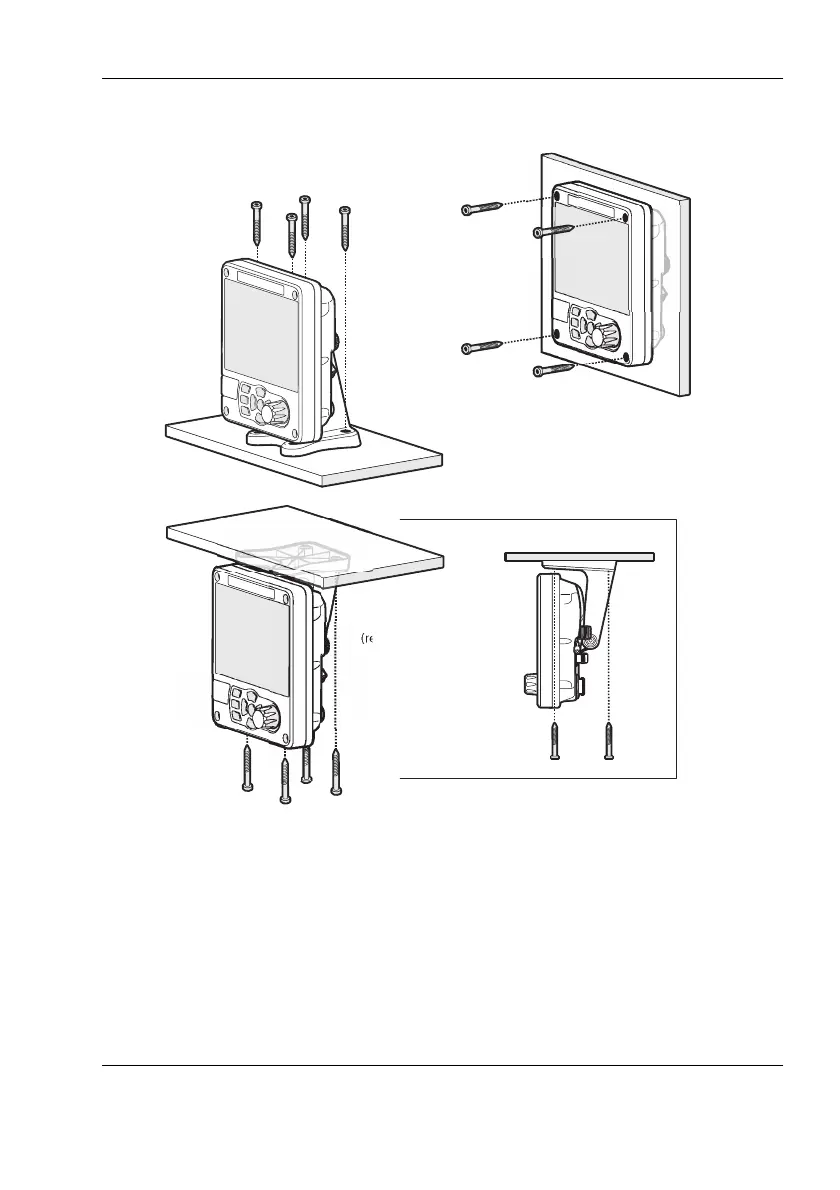

Figure 4 Mounting the AIS transceiver
Refer to Figure 30. for dimensions. A drilling and cutting template is provided
with the AIS transceiver.
To panel mount the unit it is necessary to remove the 4 off socket cap screws
recessed in front of the unit. See Figure 6.
Desk mounted
Panel mounted
Overhead mounted
(reverse mounting bracket)
