Em-Trak A200 - Page 33

Installation and configuration
Page 31

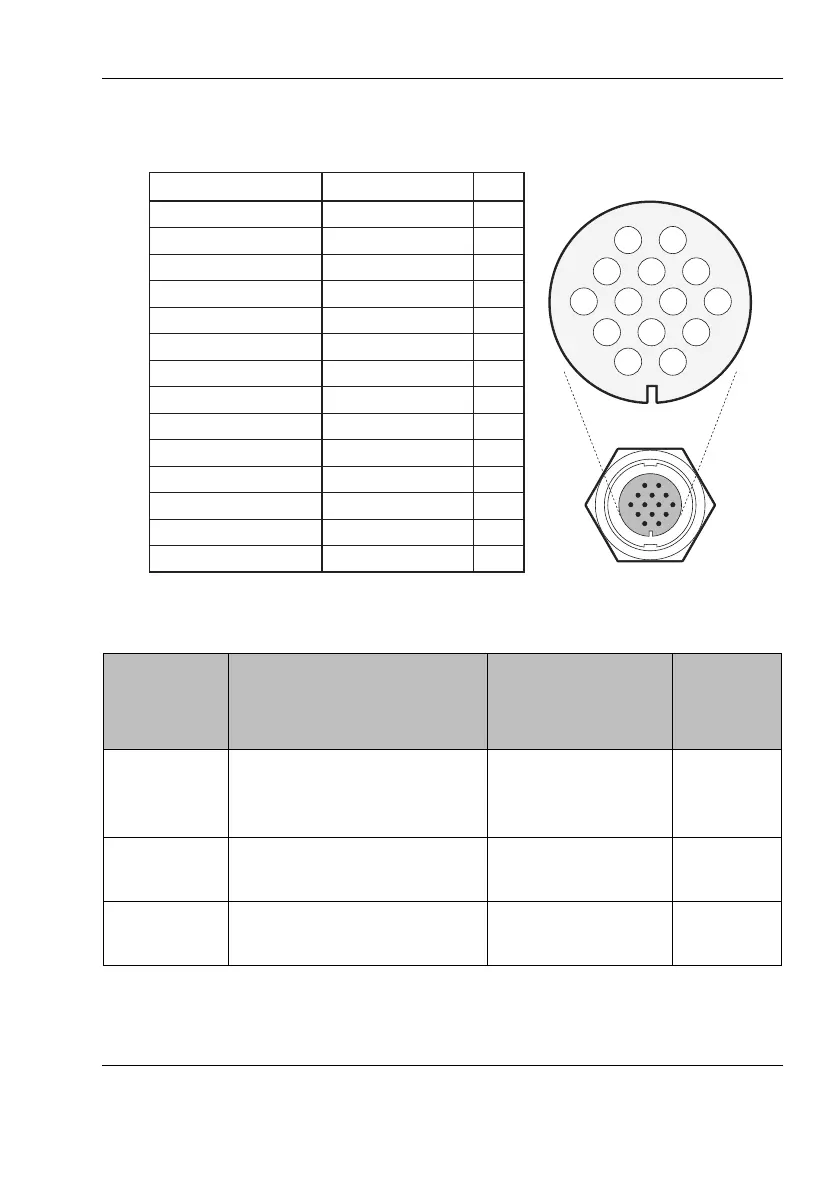

Figure 12 14 Way connector cable wiring connections
Table 1 14 Way connector serial data ports
Data port Function Type
Default
baud
rate
4 Sensor 1 input
(DGNSS - COG / SOG /
LAT / LON)
Receive only 4800
5 Sensor 2 input
(Rate of Turn)
Receive only 4800
6 Sensor 3 input
(Gyro heading)
Receive only 4800
PIN
1
3
6
7
2
5
8
9
12
11
14
13
10
4
WIRE COLOUR
BLACK
BROWN
BLUE
RED
ORANGE
PURPLE
GREEN
WHITE
WHITE / BLACK
GREY
YELLOW
RED / BLACK
PINK
DRAIN WIRE
SIGNAL
BLUE SIGN N
BLUE SIGN P
SILENT N
SILENT P
SENSOR 1 RX B
SENSOR 1 RX A
SENSOR 1 COM
SENSOR 2 RX B
SENSOR 2 RX A
SENSOR 2 COM
SENSOR 3 RX B
SENSOR 3 RX A
SENSOR 3 COM
CHASSIS
9876
12 11 10
54 3
21
14 13
