About your AIS transceiver
Page 9
2 About your AIS transceiver
2.1 Overview

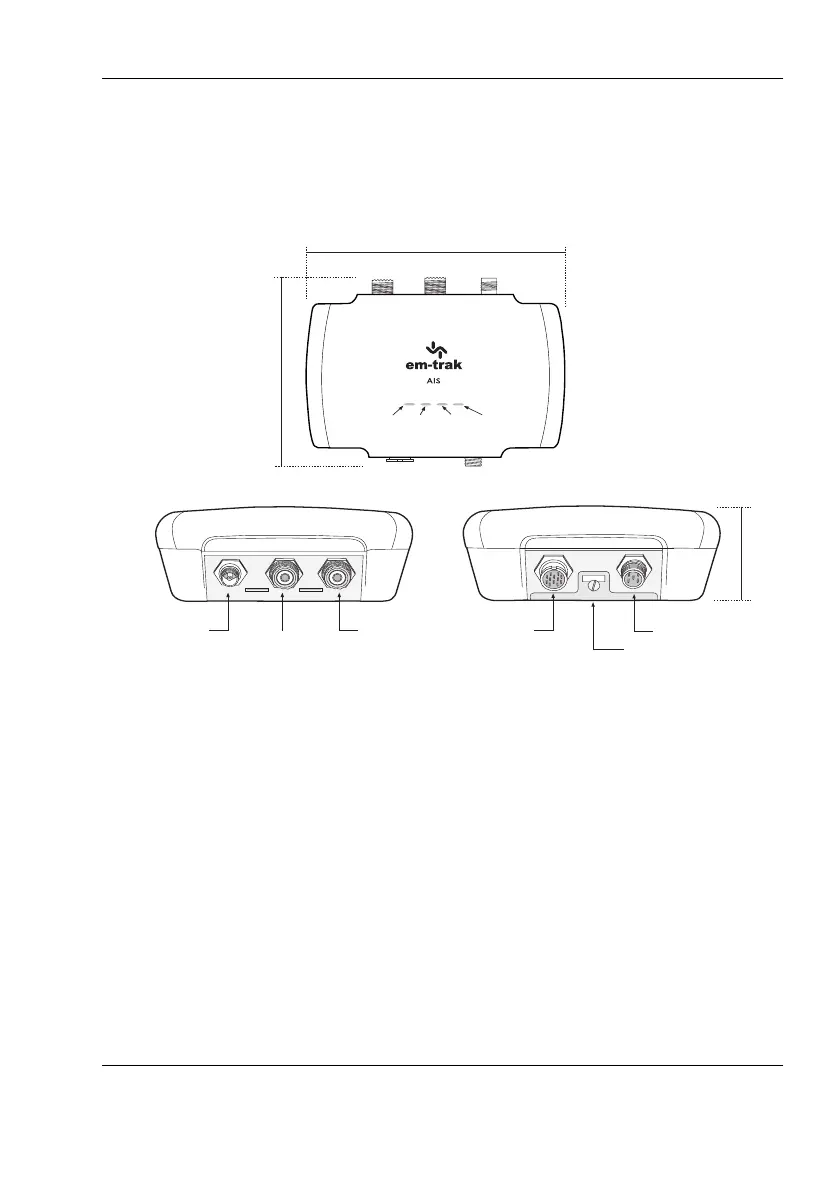

Figure 1 AIS transceiver overview
NMEA 2000Power and data
(Only applicable for
B923, B924, B953 and B954)
VHF antenna*GPS antenna
VHF radio
Mounting bracket
Amber
No Tx
indicator Lights
Blue
Silent
Red
Error
Amber
No Tx
Green
Power
* GPS receiver & antenna supports: GPS, GLONASS, Galileo and BeiDou
150 mm
115 mm
43 mm
