Installation
Page 20
It is recommended that crimped and soldered lugs are used to connect the
AIS transceiver to the power source using a suitable circuit breaker and/or 3A
fuse block. The red and black wires as shown in Figure 7 need to be
connected as follows:
1. Connect the red wire to a 12V or 24V power supply positive terminal.
2. Connect the black wire to the supply negative terminal.

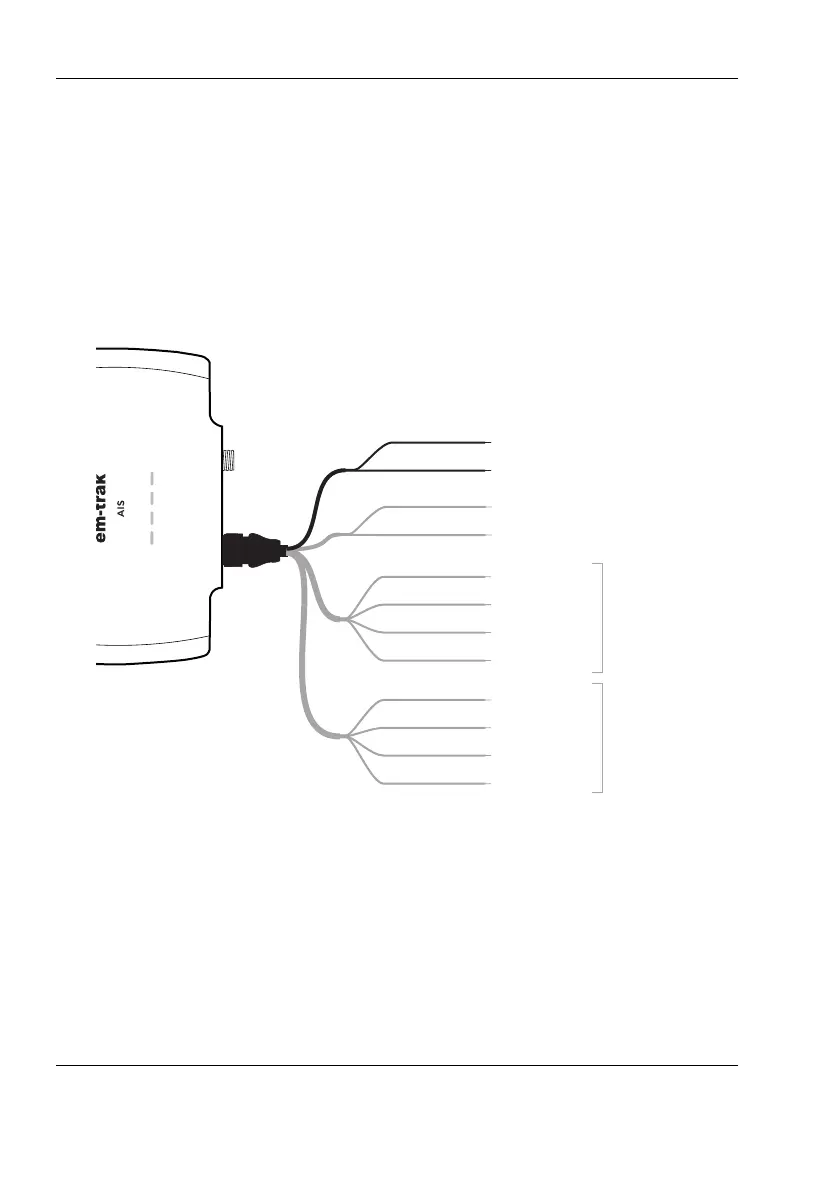

Figure 8 Connecting the power supply
Transmit +
Transmit –
Power in +
Power in –
Switch connection
Switch connection
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA 0183
Port 1
NMEA 0183
Port 2
