Installation
Page 27
Step 5 - Connecting an external switch
A toggle switch can be connected to the AIS transceiver to provide remote
control of silent mode.
Connect the toggle switch between the light green and orange wires as
shown in
Figure 11. Connection of an external switch to toggle silent mode is
optional and not essential for normal operation of the product.

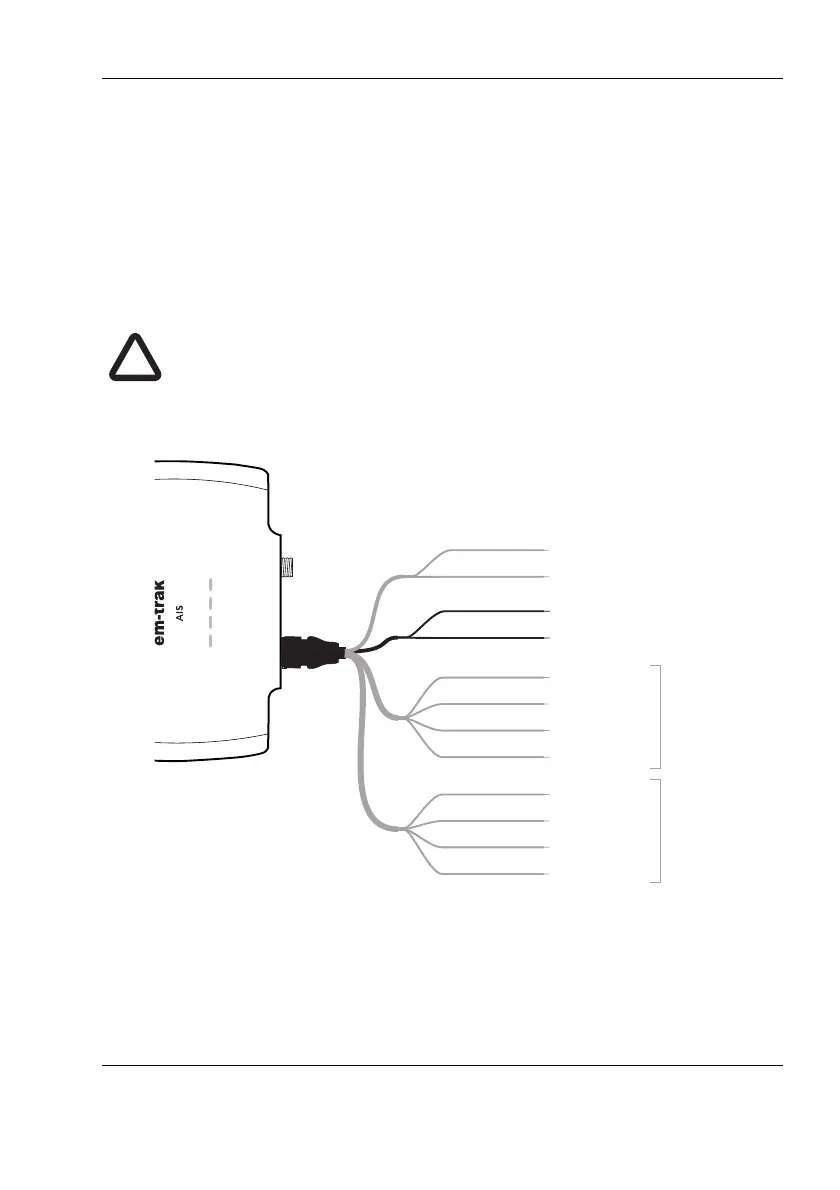

Figure 11 Connecting an external switch
Do not connect a voltage source across the switch inputs as
this may damage the transceiver.
Transmit +
Transmit –
Power in +
Power in –
Switch connection
Switch connection
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA0183
Port 1
NMEA0183
Port 2
